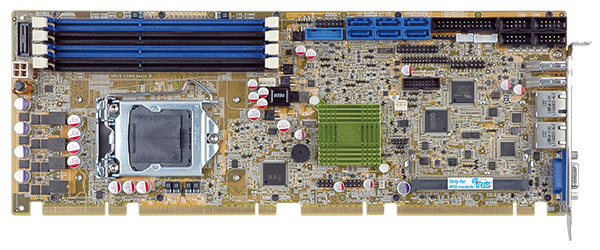

SPCIE-C2260-i2

Full-size PICMG 1.3 CPU Card supports LGA 1150 Intel® Xeon® E3, Core™ i3, Pentium® and Celeron® with Intel® C226, DDR3

  • Overview

    ● PICMG 1.3 full-size server grade solution
    ● LGA 1150 Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® processor supported
    ● Four 240-pin 1600/1333 MHz dual-channel DDR3 DIMMs support up to 32 GB
    ● Supports dual independent display by VGA and iDP interfaces
    ● Supports PCIe Mini devices and mSATA via PCIe Mini socket
    ● Intel® PCIe GbE with Intel® AMT 9.0 support
    ● Supports RAID function via SATA 6Gb/s
    ● TPM V1.2 hardware security function supported by TPM module
    ● Stiffener bars
    ● IEI jumper-less function
    ● Supports IPMI 2.0 via iRIS-2400 module
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerCF-1150SB-R11
      CF-1150SC-RS
      CF-1150SD-RS
      Environment
      Humidity5% ~ 95% non-condensing
      Operating Temperature-20°C ~ 60°C
      Expansion Slots
      Expansion SlotsPCIe Mini slot
      I/O Interface
      AudioSupports by IEI AC-KIT-892HD audio kit
      Digital I/O8-bit Digital I/O
      DisplayDual display supported
      1 x VGA
      1 x iDP interface
      EthernetLAN1: Intel® I217LM with Intel® AMT
      9.0 support
      LAN2: Intel® I210-AT PCIe controller
      with NCSI support
      I/O Interface
      I/O Interface1 x Internal RS-485
      4 x Internal USB 2.0
      2 x Internal USB 3.0
      1 x KB/MS
      2 x LAN LED
      1 x LPT
      1 x Internal RS-422
      1 x Internal Display
      1 x I²C
      2 x Ethernet
      2 x USB 3.0
      4 x Internal RS-232
      Option
      iRIS1 x iRIS-2400 slot
      Power
      Power consumption5V@3.55A, 12V@0.37A,
      Vcore_12V@7.61A, 3.3V@1.55A,
      5VSB@0.13A
      (Intel® E3-1240 v3 3.4GHz CPU
      with 16GB (4x4GB) 1333MHz DDR3
      memory)
      Storage
      Storage1 x mSATA (colay SATA port 6) (support
      SATA 6GB/s signal only)
      6 x SATA 6GB/s (RAID 0, 1, 5, 10
      supported)
      System
      ChipsetIntel® C226
      CPULGA 1150 Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® processor supported
      CPU SocketLGA1150
      Memory Max.Four 240-pin 1600/1333MHz dualchannel
      DDR3 & DDR3L SDRAM
      unbuffered DIMMs (system max. 32GB)
      Watchdog Timer
      Watchdog TimerSoftware programmable and supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      SPCIE-C2260-i2-R10Full-size PICMG 1.3 CPU Card supports LGA1150 Intel Xeon E3/Core™ i3/Pentium and Celeron per Intel C226,DDR3,VGA,IDP,Dual Intel PCIe GbE,SATA III,mSATA, mini PCIe,RS-232,HD Audio, iRIS-2400 and RoHS
    • Package Contents

      • 1 x SPCIE-C2260-i2 single board computer

      • 1 x Dual RS-232 cable

      • 2 x SATA cable

      • 1 x USB 2.0 cable

      • 1 x QIG
