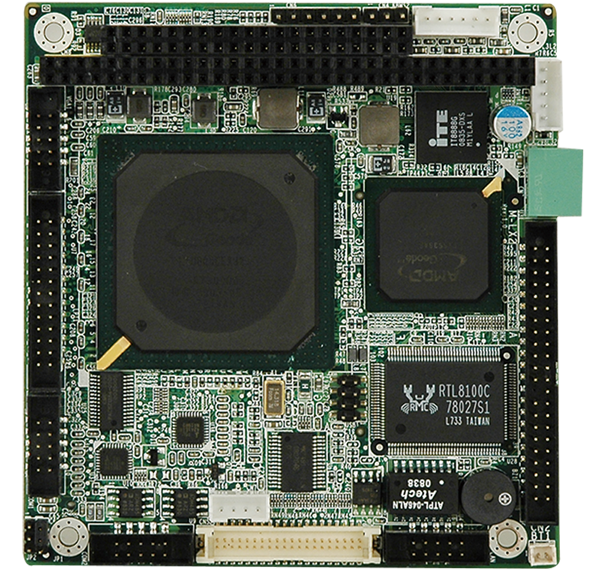

    AMD Geode™ LX 800 CPU on-board PC/104 Module
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPUAMD Geode™ LX 800 (500 MHz)
      ChipsetAMD CS5536
      MemoryOne 200-pin 400 MHz DDR SDRAM SODIMM
      Memory Max.1GB
      Physical Characteristics
      Dimensions (LxWxH) (mm)96 X 90
      Net Weight110
      StorageDescription: 1 x IDE (2x22 pin, P=2.0),1 x Slim FDD
      I/O Interface
      Display Output1 x VGA :up to 1920x1440@60Hz
      1 x TTL :24-bit single-channel (up to 1600x1200@60Hz)
      EthernetDescription: One Realtek RTL8100C 10/100Mbps
      Ethernet chipset
      I/O Interface2 x Internal RS-232 :2x5 pin, P=2.0
      1 x Internal RS-422/485 :1x4 pin, P=2.0
      2 x Internal USB 2.0 :2x4 pin, P=2.0
      Expansion1 x PC/104
      Power Consumption5V@1.09A (AMD Geode™ LX 800 with one
      512MB 400 MHz DDR)
      Power Supply5V only DC input
      1 x Internal power connector (1x2 pin)
      Support AT mode
      Operating Temperature0°C ~ 60°C
      Humidity5% ~ 95%, non-condensing
      Safety & EMCCE/FCC compliant
    • Ordering Info.

      Item No. Description
      PM-LX2-800W-R10 PC/104 SBC with AMD LX800 500Mhz,VGA/TTL,LAN,USB2.0 and CFII,Wide Temperature -40~70°C,RoHS
      PM-LX2-800-R10 PC/104 SBC with AMD LX800 500Mhz,VGA/TTL,LAN,USB2.0 and CFII,RoHS
    • Package Contents

      • 1 x PM-LX2 single board computer

      • 1 x Power cable

      • 1 x ATA33 flat cable

      • 2 x RS-232 cable

      • 1 x Dual USB cable

      • 1 x Mini jumper pack

      • 1 x LAN cable

      • 1 x PS/2 KB/MS cable

      • 1 x QIG

      • 1 x VGA cable
