PM-LX

PCI-104 Module with on-board AMD Geode™ LX 800 CPU

End of Life

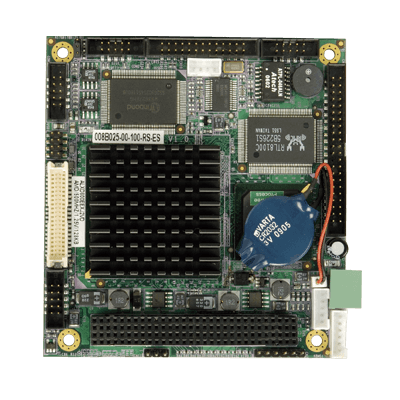

PM-LX Embedded Board
  • PM-LX Embedded Board

End of Life Notice

* Effective Date: 2022/09/02

PCI-104 Module with on-board AMD Geode™ LX 800 CPU

Hardware Spec.

System
CPU AMD Geode™ LX 800 (500 MHz) processor
Chipset AMD CS5536
Memory One 200-pin 400 MHz DDR SDRAM SODIMM
Memory Max. 1GB
Physical Characteristics
Dimensions (LxWxH) (mm) 95 X 95
Net Weight 110
Storage
Storage Description: 1 x IDE (2x22 pin, P=2.0)
1 x CF Type II Card
I/O Interface
Display Output 1 x VGA :up to 1920x1440@60Hz
1 x TTL :24-bit single-channel (up to 1600x1200@60Hz)
Ethernet Description: 10/100Mbps realtek RTL8100C Ethernet chipset
I/O Interface 2 x Internal RS-232 :2x5 pin, P=2.0
1 x Internal RS-422/485
2 x Internal USB 2.0 :2x4 pin, P=2.0
1 x PS/2 :1x6 pin
1 x LPT :2x13 pin, p=2.0
Expansion 1 x PC/104
Power
Power Consumption 5V@1.13A (AMD Geode™ LX 800 with 1 GB 400 MHz DDR memory)
Power Supply 5V only DC input
1 x Internal power connector (1x2 pin)
Support AT mode
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -10°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

PM-LX-800-R11 PC-104 SBC with AMD LX800 Processor,VGA/TTL, LAN, USB2.0 CF TypeII,ROHS

Package Contents

Package Content
  • 1 x PM-LX single board computer

  • 1 x ATA33 flat cable

  • 1 x LAN cable

  • 1 x KB/MS Y cable

  • 1 x Power cable

  • 1 x Mini jumper pack

  • 1 x USB cable

  • 1 x VGA cable

  • 1 x QIG

  • 2 x RS-232 cable
