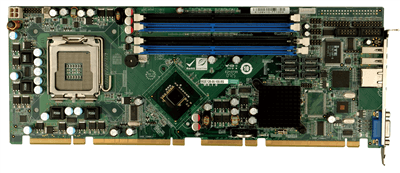

Full-size PICMG 1.3 CPU Card supports 45 nm LGA 775 Intel® Core™2 Duo and Core™2 Quad Processors with 800 MHz, 1066 MHz or 1333 MHz FSB including Intel® Q35 GMCH

End of Life

End of Life Notice

* Effective Date: 2017/09/04

» PICMG 1.3 and RoHS compliant
» Intel® Q35 & ICH9-DO platform
» Supports 45nm LGA 775 Intel® Core™2 Duo and Core™2 Quad processors
» Six SATA 3Gb/s ports with Intel® Matrix Storage Technology supported
» Intel® PCIe GbE
» TPM 1.2 IT security solution supported
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System CPU
Chipset Intel® Q35 + ICH9DO
Memory Max. Four 240-pin 667/800MHz dualchannel
(system max. 8GB)
CPU Socket LGA775
I/O Interface Ethernet
Digital I/O 8-bit Digital I/O (4-bit input/4-bit output)
Display 1 x VGA
SDVO output for dual display
application (by IEI PCIe x16
SDVO add-on card)
Audio IEI AC-KIT-892HD-R10
7.1-channel HD audio kit via
the on-board 10-pin header
Power Power consumption
Environment Operating Temperature
Humidity 5% ~ 95%, non-condensing
Option iRIS
Storage Storage
Expansion Slots Expansion Slots
Watchdog Timer Watchdog Timer
CPU Cooler CPU Cooler
I/O Interface I/O Interface
2 x Internal RS-232
10 x Internal USB 2.0
1 x KB/MS

Ordering Information

PCIE-Q350-R13 PICMG1.3 CPU Card supports Intel LGA 775 Core 2 Duo CPU in 45nm process at FSB800/1066/1333MHz,Intel Q35& CH9-DO platform, single Intel GbE,SATAII with RAID Functions,USB,HD Audio,ROHS
