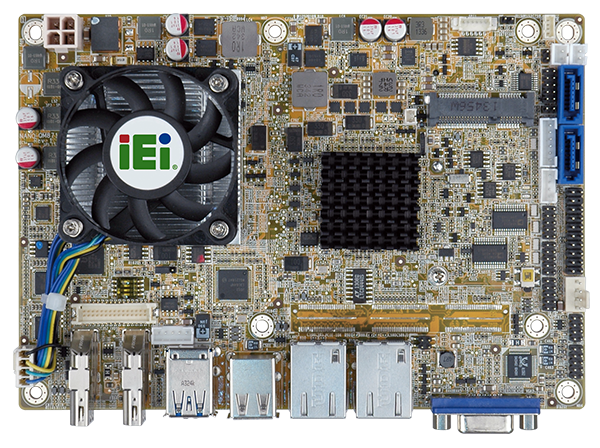

NANO-QM871-i1

EPIC SBC supports 4th Generation Intel® Mobile Processor

End of Life

End of Life Notice

* Effective Date: 2023/06/08

» 4th generation Intel® mobile Core™ i7/i5/i3 or Celeron® on-board processor
» IEI jumper-less function
» Triple independent display via dual HDMI™+VGA, dual HDMI™+LVDS or HDMI™+LVDS+VGA
» DDR3/DDR3L 1600/1333 MHz SDRAM support up to 8 GB
» COM, USB 3.0, SATA 6Gb/s and audio support
» Intel® GbE LAN with Intel® AMT 9.0 support
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Support IPMI 2.0 with iRIS-1010 module

Hardware Spec.

System
CPU Intel® mobile Core™ i7-4700EQ on-board processor with Intel® AMT 9.0 support (2.4GHz, quad-core, 6MB cache, TDP=47W)
Intel® mobile Core™ i5-4400E on-board processor with Intel® AMT 9.0 support (2.7GHz, dual-core, 3MB cache, TDP=37W)
Intel® mobile Core™ i3-4100E on-board processor (2.4GHz, dual-core, 3MB cache,
TDP=37W)
Intel® mobile Celeron® 2000E on-board processor (2.2GHz, dual-core, 2MB cache,
TDP=37W)
Intel® mobile Core™ i5-4402E on-board processor with Intel® AMT 9.0 support (1.6GHz, dual-core, 3MB cache, TDP=25W)
Intel® mobile Core™ i3-4102E on-board processor (1.6GHz, dual-core, 3MB cache, TDP=25W)
Intel® mobile Celeron® 2002E on-board processor (1.5GHz, dual-core, 2MB cache, TDP=25W)
Chipset Intel® QM87
Memory One 204-pin 1600/1333 MHz
dual-channel DDR3 & DDR3L SDRAM unbuffered DIMM
Memory Max. 8GB
Physical Characteristics
Dimensions (LxWxH) (mm) 115 X 165
Net Weight 350g
Storage
Storage 2 x SATA :6Gb/s with 5V SATA power connector(RAID0,1 supported)
I/O Interface
Display Output 1 x VGA
2 x HDMI™ :up to 2500x1600@60Hz
1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
Ethernet 2 x LAN :LAN1: Intel® I217-LM PHY with Intel® AMT 9.0 support
LAN2: Intel® I210-AT PCIe controller
Audio Description: Realtek ALC662 HD Audio codec
1 x Front Audio :2x5 pin
I/O Interface 2 x Internal RS-232 :2x5 pin, p=2.0
1 x Internal RS-422/485 :1x4 pin, p=2.0
2 x External USB 2.0
2 x External USB 3.2 Gen1x1
2 x Internal USB 2.0 :2x4 pin, p=2.0
1 x PS/2 :1x6 pin
Expansion 1 x PCIe mini Card Slot :Full-size(support mSATA)
1 x PCIe/104 :Type 2 slot (optional)
Other Features
iRIS 1 X iRIS-1010 slot
TPM 2x10 pin
Power
Power Consumption 12V@4.78A (Intel® Core™ i7-4770EQ 2.4GHz CPU
with 4 GB 1333 MHz DDR3 memory)
Power Supply 12V only DC input
1 x Internal power connector (2x2 pin)
Support AT/ATX mode
Environment
Operating Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 60°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

NANO-QM871-i1-i7-R10 EPIC SBC supports Intel® 22nm 4th Generation Mobile Core™ i7-4700EQ processor (47W), with VGA/Dual HDMI™/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, PCIe/104, SATA 6Gb/s, Audio, iRIS-1010 and RoHS
NANO-QM871-i1-i5-R10 EPIC SBC supports Intel® 22nm 4th Generation Mobile Core™ i5-4400E processor(37W) with VGA/Dual HDMI™/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, PCIe/104, SATA 6Gb/s, Audio, iRIS-1010 and RoHS
NANO-QM871-i1-i3-R10 EPIC SBC supports Intel® 22nm 4th Generation Mobile Core™ i3-4100E processor(37W) with VGA/Dual HDMI™/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, PCIe/104, SATA 6Gb/s, Audio, iRIS-1010 and RoHS
NANO-QM871-i1-C-R10 EPIC SBC supports Intel® 22nm 4th Generation Mobile Celeron™ 2000E processor (37W) with VGA/Dual HDMI™/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, PCIe/104, SATA 6Gb/s, Audio, iRIS-1010 and RoHS

Package Contents

Package Content
  • 1 x NANO-QM871-i1 single board computer

  • 1 x Audio cable

  • 1 x CPU cooler

  • 1 x Power cable

  • 2 x RS-232 cable

  • 1 x QIG (Quick Installation Guide)

  • 2 x SATA with power cable kit
