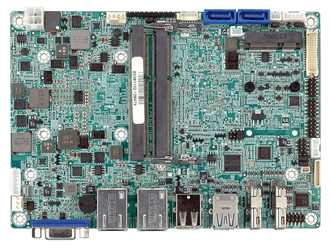

NANO-HM651

EPIC SBC with on-board Intel® Celeron® Dual Core 847E 1.1GHz CPU

End of Life

End of Life Notice

* Effective Date: 2017/12/30

» EPIC SBC with on-board mobile 32nm Intel® Celeron® dual-core 847E 1.1GHz processor
» Dual HDMI™/VGA with dual display support
» Dual-channel 204-pin 1333/1066 MHz DDR3 SO-DIMMs support up to 8 GB
» Easy assembly heat spreader for thermal management
» Supports three COM, four USB 3.0, two SATA 6Gb/s and audio
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

CPU Cooler
CPU Cooler Heat Spreader
Display
Display Dual display supported
1 x VGA
2 x HDMI™
1 x 24-bit dual-channel LVDS
Environment
Humidity 5% ~ 95% non-condensing
Operating Temperature -10°C ~ 60°C (14°F ~ 140°F)
Expansion Slots
Expansion Slots 1 x PCIe Mini card slot with
mSATA support
I/O Interface
Audio Realtek ALC662 HD Audio codec
Digital I/O 8-bit digital I/O (4-bit input / 4-bit output)
Ethernet Dual LAN: Realtek RTL8111E
PCIe GbE controller with ASF
2.0 support
I/O Interface 2 x RS-232
1 x RS-422/485
2 x USB 3.0
4 x USB 2.0
1 x 4-pin wafer for SMBus
1 x 4-pin wafer for I²C
1 x 6-pin wafer for PS/2 KB/MS
1 x TPM connector (2x10 pin)
I/O Interface
I/O Interface 2 x USB 3.0
2 x RS-232
1 x RS-422/485
4 x USB 2.0
Option
iRIS N/A
Power
Power consumption 12V@3.01A (Intel® Celeron®
847E 1.1GHz with 1333MHz
4GB memory)
Storage
Storage 2 x SATA 6Gb/s
System
Chipset Intel® HM65
CPU Intel® Celeron® 847E 1.1GHz
CPU Socket On Board
Memory Max. 2 x 204-pin 1066/1333MHz
dual-channel DDR3 SO-DIMMs
(system max. 16GB)
Watchdog Timer
Watchdog Timer Software programmable and supports 1~255 sec. system reset

Ordering Information

NANO-HM651-847E-R10 EPIC SBC supports Intel Celeron dual core 847E 1.1GHz CPU,Dual DisplayPort/ VGA/ LVDS,Dual GbE,USB 2.0,PCIe Mini,SATA 6Gb/s,Audio and RoHS

Package Contents

Package Content
  • 1 x NANO-HM651 single board computer with heat spreader

  • 1 x Audio cable

  • 1 x Power cable

  • 1 x Mini jumper pack

  • 1 x SATA with power cable kit

  • 2 x Plastic shaft for securing half-size PCIe Mini card

  • 1 x QIG (Quick Installation Guide)

  • 2 x RS-232 cable


Download Specs.
