NANO-CV-D25502/N26002

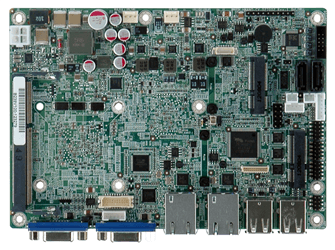

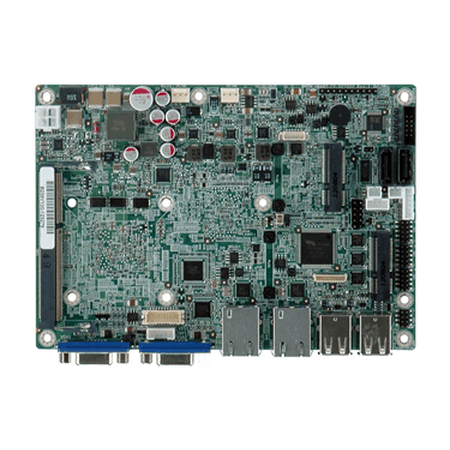

EPIC SBC with Intel® Atom™ D2550 1.86GHz/N2600 1.6GHz

End of Life

End of Life Notice

* Effective Date: 2018/09/28

» EPIC form fator with Intel® Atom™ dual core D2550 1.86GHz/N2600 1.6GHz proccessor supporting DDR3 memory
» Dual display support by dual VGA and 18/24-bit single-channel LVDS
» 1066/800HMz DDR3 SO-DIMM supports up to 4 GB
» Easy assembly heat spreader for thermal management
» Wide power voltage range supports 9V ~ 28V power input
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

CPU Cooler
CPU Cooler Heat Spreader
Display
Display Dual display supported
VGA1: Integrated in Intel® CPU
VGA2: Integrated in NXP
PTN3392
1 x Single-channel 18-bit
(N2600)/24-bit LVDS2 (D2550)
Environment
Humidity 5% ~ 95%, non-condensing
Operating Temperature -20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550
processor
-20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600
processor
Expansion Slots
Expansion Slots 1 x PCIe Mini card slot with
mSATA support
1 x half-size PCIe Mini card slot
I/O Interface
Audio Realtek ALC662 HD Audio Codec
Digital I/O 8-bit digital I/O (4-bit input / 4-bit output)
Ethernet Dual Realtek RTL8111E PCIe GbE controllers with ASF 2.0 support
I/O Interface 3 x RS-232
1 x RS-422/485
6 x USB 2.0
1 x 6-pin header for KB/MS
I/O Interface
I/O Interface 1 x RS-422/485
3 x RS-232
6 x USB 2.0
Power
Power consumption 12V@1.59A (Intel® dual core
D2550 CPU with 1333MHz 4GB
DDR3 memory)
12V@1.23A (Intel® dual core
N2600 CPU with 1333MHz 4GB
DDR3 memory)
Storage
Storage 2 x SATA 3Gb/s or
1 x SATA 3Gb/s + 1 x mSATA
System
Chipset Intel® NM10
CPU Intel® Atom™ D2550 1.86GHz
Intel® Atom™ N2600 1.6GHz
CPU Socket On Board
Memory Max. 1 x 204-pin 1066 MHz 4 GB
DDR3/DDR3L (1.35V) SO-DIMM
(system max. 4GB) for D2550
1 x 204-pin 800 MHz 2 GB
DDR3/DDR3L (1.35V) SO-DIMM
(system max. 2GB) for N2600
Watchdog Timer
Watchdog Timer Software programmable and supports 1~255 sec. system reset

Ordering Information

NANO-CV-D25502-R10 EPIC SBC with Intel Atom D2550 1.86GHz,DDR3,Dual VGA/LVDS,Dual GbE,USB 2.0,Dual PCIe Mini,SATA 3Gb/s and Audio
NANO-CV-N26002-R10 EPIC SBC with Intel Atom N2600 1.6GHz,DDR3,Dual VGA/LVDS,Dual GbE,USB 2.0,Dual PCIe Mini,SATA 3Gb/s and Audio
NANO-CV-N28002-R10 EPIC SBC with Intel Atom N2800 1.86GHz,DDR3,Dual VGA/LVDS,Dual GbE,USB 2.0,Dual PCIe Mini,SATA 3Gb/s and Audio

Package Contents

Package Content
  • 1 x NANO-CV-D25502/N26002 single board computer with heat spreader

  • 1 x Audio cable

  • 1 x Mini jumper pack

  • 1 x Power cable

  • 1 x RS-232 cable

  • 1 x QIG (Quick Installation Guide)

  • 1 x SATA with 5V output cable kit
