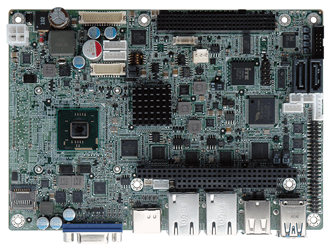

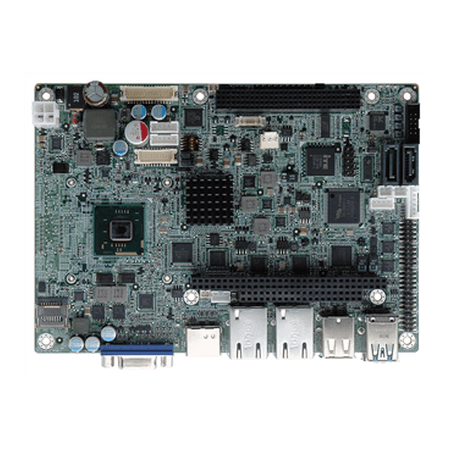

NANO-CV-D25501/N26001

EPIC SBC with Intel® D2550/N2600

End of Life

End of Life Notice

* Effective Date: 2018/09/28

» EPIC form factor with Intel® D2550/N2600 dual-core proccessor supporting DDR3/DDR3L (1.35V) memory
» Wide range 9V ~ 28V DC input design
» Flexible VGA, dual LVDS and HDMI™ with dual-display support
» Supports PC/104-Plus and PCIe Mini card slot compatible with mSATA SSD storage
» Complete I/O with six USB, two SATA 3Gb/s, four COM and audio
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

CPU Cooler
CPU Cooler Heat Spreader
Display
Display Dual display supported
VGA (up to 1920x1200@60Hz)
(Due to Intel GMA driver limitation, the monitor connected to the VGA connector may not have signal to it or become extended desktop after restarting from the graphics driver installation. To solve this problem, press the Ctrl+Alt+F1 hotkey to switch the primary screen to CRT mode.)
HDMI™ (up to 1920x1200@60Hz)
24-bit single-channel LVDS1 (D2550)
(up to 1440x900@60Hz)
18-bit single-channel LVDS1 (N2600/N2800)
(up to 1366x768@60Hz)
24-bit dual-channel LVDS2 (up to 1920x1200@60Hz)
DP to LVDS converter (up to 1920x1200(D2550) or 1600x1200(N2600/N2800)@60Hz)
Environment
Humidity 5% ~ 95%, non-condensing
Operating Temperature -20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor
-20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600 processor
Expansion Slots
Expansion Slots 1 x PCIe Mini card slot with
mSATA support
1 x half-size PCIe Mini card slot
I/O Interface
Audio Realtek ALC662 HD Audio Codec
Digital I/O 8-bit digital I/O (4-bit input / 4-bit output)
Ethernet Dual Realtek RTL8111E PCIe GbE controllers with ASF 2.0 support
I/O Interface 3 x RS-232
1 x RS-422/485
6 x USB 2.0
1 x 6-pin header for KB/MS
I/O Interface
I/O Interface 1 x RS-422/485
6 x USB 2.0
3 x RS-232
Power
Power consumption 12V@1.59A (Intel® dual core
D2550 CPU with 1333MHz 4GB
DDR3 memory)
12V@1.23A (Intel® dual core
N2600 CPU with 1333MHz 4GB
DDR3 memory)
Storage
Storage 2 x SATA 3Gb/s or
1 x SATA 3Gb/s + 1 x mSATA
System
Chipset Intel® NM10
CPU Intel® Atom™ D2550 1.86GHz
Intel® Atom™ N2600 1.6GHz
CPU Socket On Board
Memory Max. 1 x 204-pin 1066 MHz 4 GB
DDR3 SO-DIMM
(system max. 4GB) for D2550
1 x 204-pin 800 MHz 2 GB
DDR3 SO-DIMM
(system max. 2GB) for N2600
Watchdog Timer
Watchdog Timer Software programmable and supports 1~255 sec. system reset

Ordering Information

NANO-CV-D25501-R10 EPIC SBC with Intel Atom D2550 1.86GHz,DDR3,VGA/HDMI™/Dual LVDS,Dual GbE,USB 3.0,mSATA,SATA 3Gb/s,Audio and RoHS
NANO-CV-N26001-R10 EPIC SBC with Intel Atom N2600 1.6GHz,DDR3,VGA/HDMI™/Dual LVDS,Dual GbE,USB 3.0,mSATA,SATA 3Gb/s,Audio and RoHS
NANO-CV-N28001-R10 EPIC SBC with Intel Atom N2800 1.86GHz,DDR3,VGA/HDMI™/Dual LVDS,Dual GbE,USB 3.0,mSATA,SATA 3Gb/s and Audio

Package Contents

Package Content
  • 1 x NANO-CV-D25501/N26001 single board computer

  • 1 x Audio cable

  • 1 x USB cable

  • 1 x Power cable

  • 1 x Mini jumper pack

  • 1 x PS/2 KB/MS Y cable

  • 1 x RS-232 cable

  • 1 x QIG (Quick Installation Guide)

  • 1 x SATA with 5V output cable


Download Specs.
