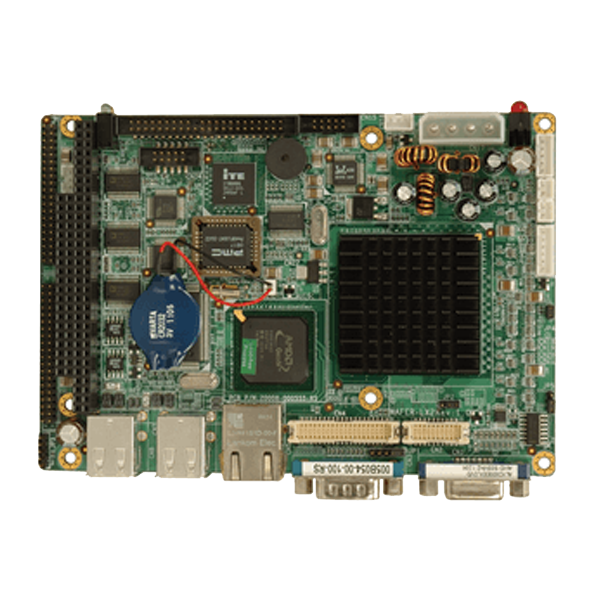

WAFER-LX2

3.5” SBC with AMD Geode™ LX 800 Processor

End of Life

End of Life Notice

* Effective Date: 2022/09/02

» 3.5” form factor with AMD Geode™ LX 800 CPU
» One 333/400 MHz DDR SO-DIMM socket supports up to 1 GB memory
» VGA, 24-bit TTL, 18-bit LVDS display interfaces
» Seven RS-232 and one RS-232/422/485
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System
CPU AMD Geode™ LX 800(5000 MHz)
Chipset AMD CS5536
Memory One 200-pin 400/333MHz DDR SDRAM SODIMM
Memory Max. 1GB
Physical Characteristics
Dimensions (LxWxH) (mm) 146 X 102
Net Weight 230
Storage
Storage Description: :1 x IDE (2 x 22 pin, P=2.0)
1 x CF Type II Card
I/O Interface
Display Output 1 x VGA :up to 1920x1440@60Hz
1 x TTL :24-bit single-channel (up to 1600x1200@60Hz)
1 x LVDS :18-bit singel-channel (up to 1280x1024@60Hz)
Ethernet LAN :10/100Mbps RTL8100C Ethernet Controller
Audio Description: :Realtek ALC203 with AC`97 codec
I/O Interface 1 x External RS-232
6 x Internal RS-232 :2x5 pin, P=2.0
1 x Internal RS-232/422/485 :2x7 pin, p=2.0
4 x External USB 2.0
Expansion 1 x PC/104 :ISA Bus
Power
Power Consumption 5V@1.33A (AMD Geode™ LX 800 with one 1GB 400MHz DDR memory)
Power Supply 5V only DC input,1 x internal power connector *1 x 4 pin),support AT/ATX mode
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -10°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

WAFER-LX2-800-R12 3.5" SBC with AMD LX800 Processor,VGA/LCD,USB2.0,8 COM And Audio,RoHS

Package Contents

Package Content
  • 1 x WAFER-LX2 single board computer

  • 1 x Mini jumper pack

  • 1 x Audio cable

  • 1 x IDE flat cable 44p/44p

  • 1 x QIG

  • 2 x Quad RS-232 adapter cable
