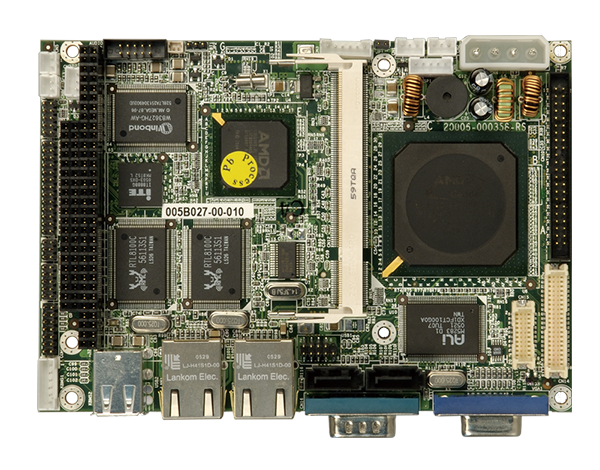

WAFER-LX

3.5” SBC with on-board AMD Geode™ LX 800 Processor

End of Life

End of Life Notice

* Effective Date: 2022/09/07

» 3.5” form factor embedded board with AMD Geode™ LX 800 processor and RoHS compliant
» 333/400 MHz DDR SDRAM SO-DIMM supports up to 1 GB
» Complete I/O support with two SATA, IDE, CF Type II, PC/104, dual LAN and four USB 2.0
» 24-bit TTL/18-bit single-channel LVDS
» Value embedded applications with low power and fanless design. Support Windows® XP/CE/XPe
» The best choice for thin client Windows® CE 5.0, XPe OS image with ICA, RDP and IE APs ready
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System
CPU AMD Geode™ LX800 (500MHz) processor
Chipset AMD CS5536
Memory One 200-pin 400/333MHz DDR SDRAM SODIMM
Memory Max. 1GB
Physical Characteristics
Dimensions (LxWxH) (mm) 146 X 102
Net Weight 230
Storage
Storage 1 x Description: IDE(2 x 22 pin, P=2.0)
2 x SATA 1.5Gb/s(RAID 0, 1support)
1 x CF Type II Card
I/O Interface
Display Output 1 x VGA :up to 1920x1440@60Hz
1 x LVDS :18-bit singel-channel (up to 1280x1024@60Hz)
Ethernet LAN :10/100Mbps RTL8100C Ethernet Controller
Audio Description: Realtek ALC203 with AC’97 Codec
I/O Interface 1 x External RS-232
1 x Internal RS-232 :2x5 pin, P=2.0
1 x Internal RS-422/485 :2x2 pin, p=2.0
2 x External USB 2.0
2 x Internal USB 2.0 :2x4 pin, P=2.0
1 x PS/2 :1x6 pin
1 x LPT :2x13 pin, p=2.0
Expansion 1 x PC/104
Power
Power Consumption 5V@1.53A (AMD LX800 with one 1GB 400MHz DDR memory)
Power Supply 5V only DC input,1 x internal power connector *1 x 4 pin),support AT/ATX mode
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -10°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

WAFER-LX-800-R12 3.5" AMD LX800 500MHz CPU Board with LCD/CRT VGA,LAN, SATA,USB2.0,Audio,RoHS

Package Contents

Package Content
  • 1 x WAFER-LX single board computer

  • 1 x Audio cable

  • 1 x KB/MS Y cable

  • 1 x IDE flat cable 44p/44p

  • 1 x RS-232/422/485 cable

  • 1 x Mini jumper pack

  • 1 x SATA power cable

  • 1 x USB cable

  • 1 x QIG

  • 2 x SATA cable
