ACE-890A

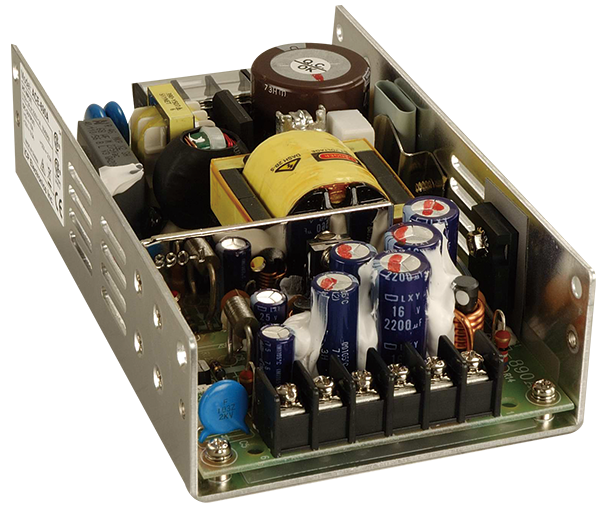

86 W AC-DC Open Frame AT Power Supply

End of Life

End of Life Notice

* Effective Date: 2021/12/16

86 W AC-DC Open Frame AT Power Supply

Hardware Spec.

General
Dimensions 152.4 x 89 x 39
Efficiency 70%
MTBF 268000
Operating temperature 0°C ~ 50°C
Output Connector Optional cable
Storage temperature -20°C ~ 85°C
Watt 86W
Input
Voltage 85 ~ 264 VAC Full Range
Frequency 47 Hz ~ 63 Hz
Input Current 2A (RMS)@115VAC, 1A (RMS)@230VAC
Inrush Current 25A max. for 115VAC, 50A max. for 230VA
Output
Voltage +5V/10A,+12V/2.5A,-12V/0.5A

Ordering Information

ACE-890A-RS 86W AC input industrial AT power supply;CCL;RoHS
