• Overview

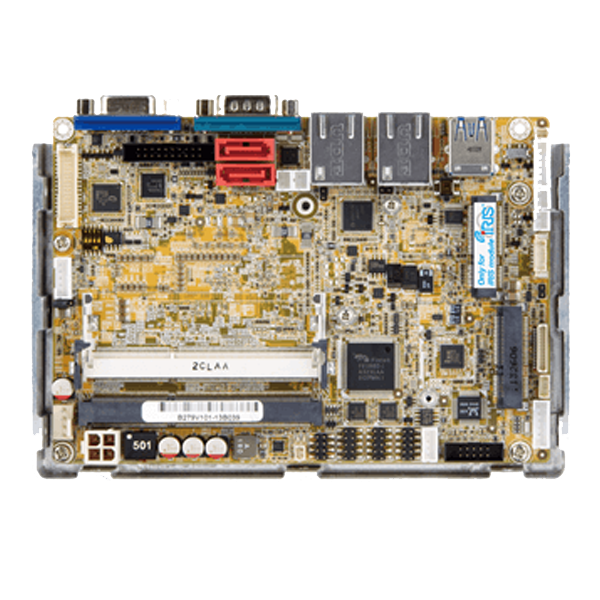

    ● 3.5” form fator with AMD® Embedded G-Series SoC
    ● 12V only single voltage design with AT/ATX mode
    ● 18/24-bit dual-channel LVDS for high resolution panel
    ● Dual independent display by VGA, LVDS and iDP
    ● Support IPMI 2.0 with iRIS-1010 module
    ● Support full-size PCIe Mini card slot for mSATA, wireless card and DOM
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerN/A
      DisplayVGA (up to 2048x1536@60Hz)
      18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to
      iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60 Hz)
      Humidity5% ~ 95%, non-condensing
      Operating Temperature0°C ~ 60°C
      Expansion Slots
      Expansion Slots1 x Full-size PCIe Mini card slot (supports mSATA co-lay SATA port 2)
      I/O Interface
      AudioRealtek AL892 HD Audio codec
      1 x S/PDIF by 4-pin (1x4) header for digital audio
      1 x Analog audio (2x5 pin)
      Digital I/O1 x 8-bit digital I/O (2x5 pin)
      EthernetLAN1: Intel® I210-AT PCIe controller with NCSI support
      LAN2: Intel® I211-AT PCIe controller
      I/O Interface
      I/O Interface2 x Internal RS-232
      1 x RS-232
      2 x USB 3.0
      1 x RS-422/485
      4 x Internal USB 2.0
      iRIS1 x iRIS-1010 slot
      Power consumption+12V@2.12A (AMD GX-415GA 1.5GHz CPU with one 4GB 1333 MHz DDR3 memory)
      Storage2 x SATA 3Gb/s with 5V SATA power connector
      CPUAMD® Embedded G-Series SoC
      GX-415GA on-board SoC (1.5GHz, quad-core, 2MB cache, TDP=15W)
      GX-210HA on-board SoC (1.0GHz, dual-core, 1MB cache, TDP=9W)
      GX-420CA on-board SoC (2.0GHz, quad-core, 2MB cache, TDP=25W)
      GX-217GA on-board SoC (1.65GHz, dual-core, 1MB cache, TDP=15W)
      CPU SocketOn Board
      Memory Max.One 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM SO-DIMM slot
      supports up to 8GB
      Watchdog Timer
      Watchdog TimerSoftware programmable, support 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      WAFER-KBN-i1-4151-R103.5" SBC supports AMD® 28nm Quad-Core GX-415GA 1.5GHz (15W) on-board SoC with VGA/LVDS, Dual GbE, Dual PCIe Mini, USB 3.0, SATA 6GB/s, Audio,iRIS-1010 and RoHS
      WAFER-KBN-i1-2101-R103.5" SBC supports AMD® 28nm Dual-Core GX-210HA 1.0GHz (9W) on-board SoC with VGA/LVDS, Dual GbE, Dual PCIe Mini, USB 3.0, SATA 6GB/s, Audio,iRIS-1010 and RoHS
    • Package Contents

      • 1 x WAFER-KBN-210H single board computer with Enclosure Heatsink

      • 1 x Audio cable

      • 1 x Power cable

      • 1 x RS-232 cable

      • 1 x QIG

      • 2 x SATA with 5V output cable kit
