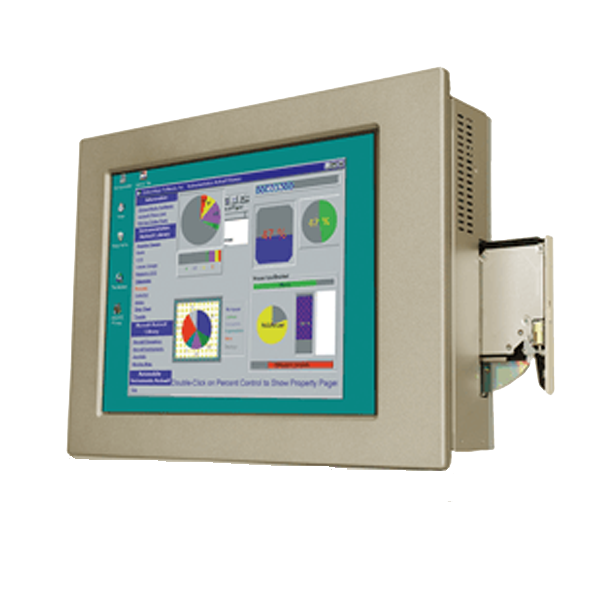

PPC-5190A-H61

Intel® Core™ i7/ i5/ i3, Pentium® and Celeron® Processor

End of Life

End of Life Notice

* Effective Date: 2020/03/02

» High brightness TFT-LCD panel with LED backlight
» Multiple storage options: 2.5” SATA HDD, CF slot, and mSATA
» Dual Ethernet provides continuous network service and allows sharing among different workgroups in two different subnets
» Optional PCI / PCIe x1 expansion slot
» Optional slim type CD-ROM drive bay
» Robust aluminum front bezel and metal casing
» IP 66 compliant front panel for PPC-5190A-H61
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery (Over 4GB storage capacity)

Hardware Spec.

Display
Backlight MTBF(hrs) 50,000
Brightness(cd/m2) 350
Contrast Ratio 1000 : 1
LCD Size 19"
Max Resolution 1280(W) x 1024(H)
Environment
Operating Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Expansion Slots
Expansion Slots Either 1 x PCI slot or 1 x PCIe slot
1 x PCIe Mini card
Other Features
System Cooling Active with Fan
Physical Characteristics
Cutout Dimensions 450 x 363
Dimensions (LxWxH) (mm) 482 x 399 x 115
System
Chipset Intel® H61
CPU 2nd/3rd generation Intel® Core™ i7/ i5/ i3, Pentium® and Celeron® processor, up to TDP 65W
HDD 1 x 2.5” SATA HDD bay with anti-shook
SSD SSD CF Type II, mSATA (SATA2 signal)
Weight
Weight 12.6 kg / 18.2 kg
I/O Interface
I/O Interface 1 x Line in
4 x LAN((RJ-45) x 2/SFP fiber LAN x 2)
1 x AT/ATX Switch
1 x VGA
2 x USB3.0
4 x USB2.0
1 x RS-422/485
1 x Line out
1 x Power Switch
4 x RS-232

Ordering Information

PPC-5190AD-H61-i3/R-R10 19” 350 cd/m2 SXGA Panel PC with POS-H61, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2,Silver color,PSU ACE-4520C, touch screen, RoHS
PPC-5190AD-H61-i5/R-R10 19” 350 cd/m2 SXGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2,Silver color,PSU ACE-4520C, touch screen, RoHS
PPC-5190A-H61-i5/R-R10 19” 350 cd/m2 SXGA Panel PC with POS-H61, Core i5 Dual Core 2xxxTCPU (Above 2.7GHz), TDP 35W, 2GB DDR3 RAM*2,Silver color, PSU ACE-A622A, touch screen, RoHS
PPC-5190A-H61-P/R-R10 19” 350 cd/m2 SXGA Panel PC with POS-H61, Pentium Dual CoreG6xxT (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2,Silver color, PSU ACE-A622A, touch screen, RoHS
PPC-5190A-H61-i3/R-R10 19” 350 cd/m2 SXGA Panel PC with POS-H61, Core i3 Dual Core 2xxxT CPU (Above 2.5GHz), TDP 35W, 2GB DDR3 RAM*2,Silver color, PSU ACE-A622A, touch screen, RoHS
PPC-5190AD-H61-P/R-R10 19” 350 cd/m2 SXGA Panel PC with POS-H61, Pentium Dual Core G6xxT (Above 2.2GHz), TDP 35W, 2GB DDR3 RAM*2,Silver color,PSU ACE-4520C, touch screen, RoHS

Package Contents

Package Content
  • SATA CD-ROM Cable

  • Power Cord

  • Panel Mount Kit

  • Wall Mount Kit

  • Touch Pen
