Overview

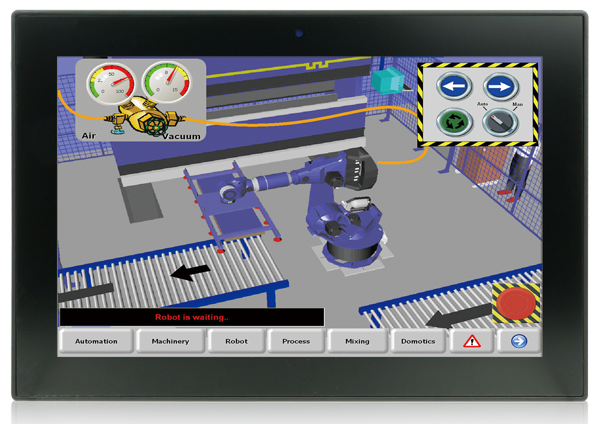

● W10” light industrial interactive panel PC● 9 V ~ 30 V wide range DC input with lockable DC jack● Selectable AT/ATX power mode● Built-in speakers● One mSATA slot● IP64 compliant front panel● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity) -
Specifications
-
Hardware Spec.
Spec Item Description Color Color Black C Communication Wireless IEEE 802.11a/b/g/n/ac Dimensions Dimensions 262 x 181 x 42 (LxWxH) (mm) Environment Humidity 10% to 95% (non-condensing) IP Level IP 64 compliant front panel Operating Temperature -10°C~50°C Safety & EMC CE / FCC Storage Temperature -20°C~60°C I/O Interface Audio AMP 2W + 2W (internal speaker) Audio Codec ALC892 Ethernet 2 x PCIe GbE by RTL8111E controller I/O Ports and Switches 1 x RS-232 COM port (RJ-45 connector)
1 x RS-232/422/485 COM port (DB-9 connector)(RI/5V/12V)
2 x USB 3.0
2 x USB 2.0
2 x RJ-45 for GbE LAN
1 x Power switch
1 x Audio port (line-out)
1 x Reset button
1 x AT/ATX switch
1 x 9-30V DC lockable power jackLCD Backlight MTBF 15000 hrs Brightness (cd/m2) 350 Contrast Ratio 800:1 LCD Color 16.2M Pixel Pitch (mm) 0.1695 (H)×0.1695 (V) Resolution 1280 x 800 (16:10) Size 10.1” Viewing Angle (H-V) 170º / 170º Other Features Audio AMP 2W + 2W (internal speaker) Camera 2-megapixel with low light function Microphone digital microphone OSD Function Software OSD System Cooling Fanless Physical Characteristics Color Black C Construction Front Panel PC + ABS Plastic Cutout Dimensions 236 x 150 (W x H) (mm) Dimensions (LxWxH) (mm) 262 x 181 x 42 Mounting Panel, Wall, Stand, Arm
VESA 75mm x 75mmNet Weight 1.06 kgs Power Power consumption 12V@2.3A (Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory) Power Requirement 9 V ~ 30 V Storage Storage mSATA System Cooling method / System Fan Fanless CPU Intel® Celeron® J1900 (quad core, 2.0 GHz) Memory Max. 8GB On-board Memory One 204-pin 2 GB 1333MHz single-channel, 2GB DDR3L SDRAM pre-installed Storage mSATA Touch Touch Controller EETI EXC7200 Touch Screen Projected capacitive type Weight Weight 1.06/2.58 (Net/Gross, kgs) -
Ordering Info.
Item No. Description AFL3-W10A-BT-J1/PC/2G-R13 10.1” 350cd/m² 1280x800 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11 a/b/g/n/ac wireless module, projected capacitive touch screen, 2GB DDR3L RAM , with AG, R13 -
Package Contents
2 x Round head machine screw
4 x Pan head machine screw
2 x Fix holder
1 x Power cord
1 x Power adapter
1 x RJ-45 to DB-9 COM port transfer cable
1 x Touch pen
-
-
