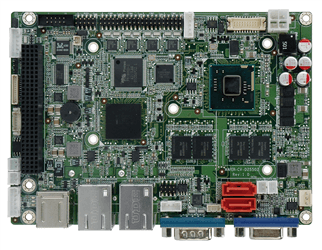

WAFER-CV-D25502/N26002

3.5” SBC Supports Intel® Atom™ D2550/N2600 Processor

End of Life

End of Life Notice

* Effective Date: 2018/09/28

» 3.5” form factor supports Intel® Atom™ D2550/N2600 dual-core processor with 2 GB DDR3 memory
» 12V only single voltage design for AT/ATX power
» 24-bit single-channel LVDS via D2550 CPU or 18-bit single-channel via N2600/N2800 CPU support
» Supporting PCI-104 and mSATA
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

CPU Cooler
CPU Cooler Specific Heatsink
Display
Display Dual display supported
1 x VGA Integrated in Intel® CPU
1 x Single-channel 18-bit
(N2600)/24-bit LVDS2 (D2550)
Environment
Humidity 5% ~ 95%, non-condensing
Operating Temperature -20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor
-20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600 processor
Expansion Slots
Expansion Slots 1 x Full/Half-size PCIe Mini card
slot with mSATA support
1 x PCI-104 slot supports PCI singal
I/O Interface
Audio Realtek ALC662 HD Audio codec
Digital I/O 8-bit digital I/O (4-bit input / 4-bit output)
Ethernet Dual LAN: Realtek RTL8111E controllers
I/O Interface 5 x RS-232
1 x RS-422/485
4 x USB2.0
1 x 6-pin wafer for PS/2 KB/MS
I/O Interface
I/O Interface 2 x USB 2.0
2 x Internal USB 2.0
5 x RS-232
1 x RS-422/485
Power
Power consumption 12V@1.19A (1.86GHz Intel® D2550 with on-board 1066MHz
1GB SDRAM)
12V@0.95A (1.6GHz Intel® N2600
with on-board 1066MHz 1GB
SDRAM)
Storage
Storage 2 x SATA 3Gb/s or
1 x SATA 3Gb/s + 1 x mSATA
System
Chipset Intel® NM10
CPU Intel® Atom™ D2550 (1.86GHz, dual-core, 1MB cache)
Intel® Atom™ N2600 (1.6GHz, dual-core, 1MB cache)
Intel® Atom™ N2800 (1.86GHz, dual-core, 1MB cache)
CPU Socket On board
Memory Max. On-board DDR3 1066MHz 2GB
SDRAM
Watchdog Timer
Watchdog Timer Software programmable and supports 1~255 sec. system reset

Ordering Information

WAFER-CV-D25502-R10 3.5" SBC with Intel Atom D2550 1.86MHz processor,2GB DDR3 memory down,VGA/LVDS,Dual GbE,PCI/104,USB 2.0,SATA 3GB/s and Audio
WAFER-CV-N26002-R10 3.5" SBC with Intel Atom N2600 1.6MHz processor,2GB DDR3 memory down,VGA/LVDS,Dual GbE,PCI/104,USB 2.0,SATA 3GB/s and Audio

Package Contents

Package Content
  • 1 x WAFER-CV-D25502/N26002 single board computer

  • 1 x Audio cable

  • 1 x Power cable 1 x Mini jumper pack

  • 1 x PS/2 KB/MS cable

  • 1 x QIG

  • 1 x RS-232 cable

  • 2 x SATA with 5V output cable kit
