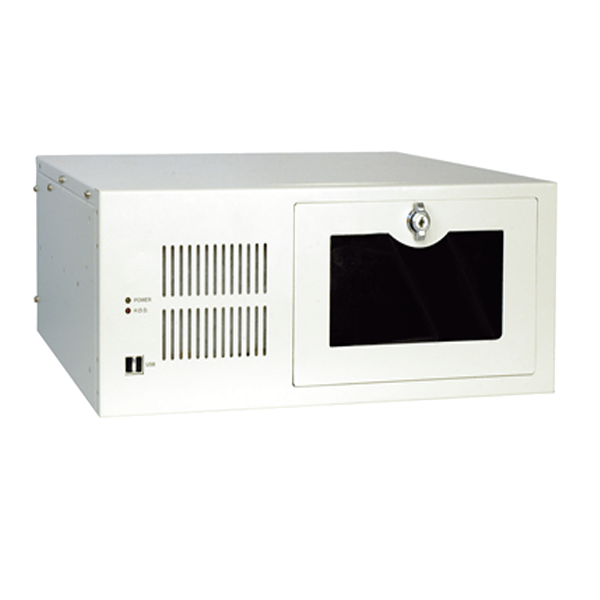

» Cost-effective, RoHS compatible design
» Flexible drive combinations
» Two USB ports on the front panel
» 12 cm cooling fan with replaceable fan filter
» Lockable door prevents unauthorized access
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | Full-size, slot CPU card |
| I/O Interface | |
| I/O Openings | 2 x COM, 2 x LPT |
| I/O Ports | 2 x USB |
| Expansion Slots | |
| Expansion Slots |
14 slots for RACK-360G 7 slots for RACK-360GATX |
| System | |
| Cooling method / System Fan | 1 x 12 cm |
| Drive Bays |
3 x 5.25” + 1 x 3.5” HDD or 2 x 5.25” + 2 x 3.5” HDD or 2 x 5.25” + 1 x 3.5” HDD + 1 x front accessible 3.5” or 2 x 5.25” + 2 x front accessible 3.5” |
| Indicator&Buttons | |
| Buttons | Power switch, reset button |
| Indicators | Power, HDD |
| Physical Characteristics | |
| Construction | Heavy duty metal |
| Color | |
| Color | B: Black/W: White |
| Dimensions | |
| Dimensions | 435.5 mm x 431mm x 176 mm |
| Weight | |
| Weight | 11 kg/15.4 kg(Net/Gross) |
| Environment | |
| Operating Temperature | 0°C ~ 50°C |
| Humidity | 10% ~ 90% |
Ordering Information
| RACK-360GWATX-R23/A130C | 4U ATX motherboard Rackmount Chassis,White,1x 12cm fan,w/ACE-A130C-R10(300W ATX model) |
|---|---|
| RACK-360GW-R23/ACE-935AL | 4U 14-Slot Rackmount Chassis,USB,White,W/ACE-935AL-RS PSU(300W),RoHS |
| RACK-360GW-R23/A130C | 4U 14-slot Rackmount Chassis,White,1x 12cm fan,w/ACE-A130C-R10(300W ATX model) |
| RACK-360GBATX-R23/A130C | 4U ATX motherboard Rackmount Chassis,Black,1x 12cm fan,w/ACE-A130C-R10(300W ATX model) |
| RACK-360GB-R23/ACE-935AL | 4U 14-Slot Rackmount Chassis,USB,Black,W/ACE-935AL-RS PSU(300W),RoHS |
| RACK-360GB-R23/A130C | 4U 14-slot Rackmount Chassis,Black,1x 12cm fan,w/ACE-A130C-R10(300W ATX model) |
| RACK-360EWATX-R23/A130C | 4U ATX motherboard Rackmount Chassis,White,1x 12cm fan,w/ACE-A130C-R10(300W ATX model) |
| RACK-360EW-R23/ACE-935AL | 4U 14-Slot Rackmount Chassis,USB,White,W/ACE-935AL-RS PSU(300W AT power),RoHS |
| RACK-360EW-R23/A130C | 4U 14-slot Rackmount Chassis,White,1x 12cm fan,w/ACE-A130C-R10(300W ATX power) |
| RACK-360EBATX-R23/A130C | 4U ATX motherboard Rackmount Chassis,Black,1x 12cm fan,w/ACE-A130C-R10(300W ATX power) |
| RACK-360EB-R23/ACE-935AL | 4U 14-Slot Rackmount Chassis,USB,Black,W/ACE-935AL-RS PSU(300W AT power),RoHS |
| RACK-360EB-R23/A130C | 4U 14-slot Rackmount Chassis,Black,1x 12cm fan,w/ACE-A130C-R10(300W ATX power) |
