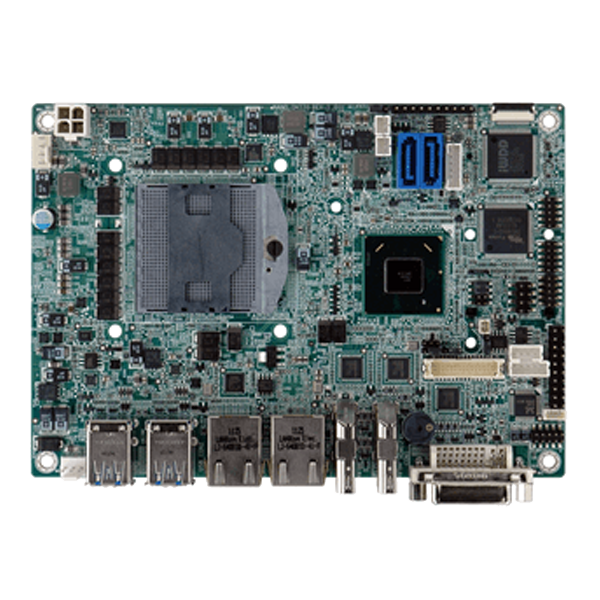

NANO-QM770

EPIC SBC Supports Socket G2 for Intel® 22nm Mobile CPU,

  • Overview
    ● EPIC SBC with Socket G2 for Intel® 22nm mobile processor
    ● Triple independent display supports with dual HDMI+DVI/dual HDMI+LVDS (HDMI V1.3a compliant)
    ● 1066/1333/1600 MHz DDR3 SDRAM supports up to 8 GB
    ● Supports three COM, four USB 3.0, two SATA 6Gb/s and audio
    ● Intel® GbE LAN with Intel® AMT 8.0 supported
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerCF-989A-RS-R12 /
      CF-989B-RS
      Display
      DisplayDual display supported
      1 x DVI-I
      2 x HDMI
      1 x 24-bit dual-channel LVDS
      Environment
      Humidity5% ~ 95% non-condensing
      Operating Temperature-10°C ~ 60°C (14°F ~ 140°F)
      Expansion Slots
      Expansion Slots1 x PCIe Mini card slot with
      mSATA support
      I/O Interface
      AudioRealtek ALC662 HD Audio codec
      Digital I/O8-bit digital I/O (4-bit input / 4-bit output)
      EthernetLAN1: Intel® 82583V PCIe
      controller
      LAN2: Intel® 82579 PHY with
      Intel® AMT 8.0 supported
      I/O Interface2 x RS-232
      1 x RS-422/485
      4 x USB 3.0
      2 x USB 2.0
      1 x 4-pin wafer for SMBus
      1 x 4-pin wafer for I²C
      1 x 5-pin header for infrared
      1 x PS/2 KB/MS
      1 x TPM connector (2x10 pin)
      I/O Interface
      I/O Interface2 x USB 2.0
      4 x USB 3.0
      2 x RS-232
      1 x RS-422/485
      Option
      iRISN/A
      Power
      Power consumption12V@4.89A (Intel® 1.8GHz
      CPU with 1333MHz DDR3 4GB
      memory)
      Storage
      Storage2 x SATA 6Gb/s
      System
      ChipsetIntel® QM77
      CPUIntel® Core™ i7/i5/i3, Celeron®
      Mobile processor
      CPU SocketSocket G2
      Memory Max.1 x 204-pin 1600/1333MHz
      DDR3 SO-DIMM
      (system max. 8GB)
      Watchdog Timer
      Watchdog TimerSoftware programmable and supports 1~255 sec. system reset

    • Ordering Info.

      Item No. Description
      NANO-QM770-R10EPIC SBC supports 3rd generation Intel Core i7/i5/i3 mobile processor,Dual HDMI/ DVI-I/ LVDS,Dual GbE,USB 3.0,PCIe Mini,SATA 6Gb/s and Audio

    • Package Contents

      • 1 x NANO-QM770 single board computer

      • 1 x Audio cable

      • 1 x Mini jumper pack

      • 1 x Power cable

      • 2 x RS-232 cable

      • 1 x QIG (Quick Installation Guide)

      • 2 x SATA with power cable kit
