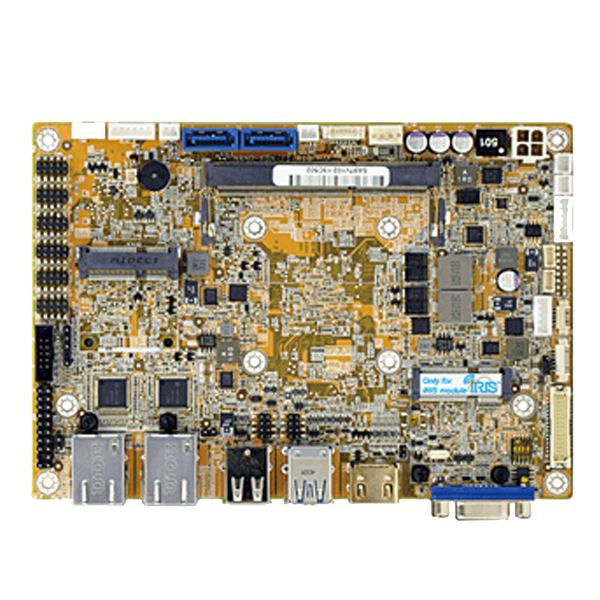

NANO-KBN-i1

EPIC SBC supports AMD® Embedded G-Series SoC

End of Life

End of Life Notice

* Effective Date: 2020/12/31

» EPIC SBC supports AMD® Embedded G-Series SoC
» Dual independent display support
» 1.35V DDR3L 1600/1333 MHz SDRAM supports up to 8 GB
» HD Audio supported by S/PDIF
» Support IPMI 2.0 with iRIS-1010 module
» COM, USB 3.0, SATA 6Gb/s PCIe Mini, mSATA and audio supported
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System
CPU AMD® Embedded G-Series ”Steppe Eagle” SoC
GX-424CC on-board Soc (2.4GHz, quad-core,
2MB cache, TDP=25W)
AMD® Embedded G-Series ”eKabini” SoC
GX-415GA on-board Soc (1.5GHz, quad-core,
2MB cache, TDP=15W)
AMD® Embedded G-Series ”LX” SoC
GX-210KL on-board Soc (1.0GHz, dual-core,
1MB cache, TDP=4.5W)
Memory One 204-pin 1600/1333 MHz singlechannel DDR3 & DDR3L SDRAM unbuffered SO-DIMM
Memory Max. 8GB
Physical Characteristics
Dimensions (LxWxH) (mm) 115 X 165
Net Weight 350g
Storage
Storage 2 x SATA :6Gb/s with 5V SATA power connector(no RAID)
I/O Interface
Display Output 1 x VGA :up to 2048x1536@60Hz
1 x HDMI™ :up to 3840x2160@60Hz
1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
Ethernet 2 x LAN :LAN1: Intel® I210-AT PCIe controller with NCSI support
LAN2: Intel® I211-AT PCIe controller
Audio Description: Realtek ALC892 HD Audio codec
1 x S/PDIF :1x4 pin
1 x Speaker :2x5 pin
I/O Interface 5 x Internal RS-232 :2x5 pin, p=2.0
1 x Internal RS-422/485 :1x4 pin, p=2.0
2 x External USB 2.0
2 x External USB 3.2 Gen1x1
4 x Internal USB 2.0 :2x4 pin, p=2.0
1 x PS/2 :1x6 pin
Expansion 1 x PCIe mini Card Slot :Full-Size(support mSATA co-lay SATA port 2)
Other Features
TPM 2x10 pin
Power
Power Consumption 12V@1.02A (AMD GX-415GA 1.5GHz CPU
with 1600 MHz 8 GB DDR3 memory)
Power Supply 12V only DC input
1 x Internal power connector (2x2 pin)
Support AT/ATX mode
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -10°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

NANO-KBN-i1-4151-R10 EPIC SBC supports AMD® 28nm Quad-Core 1.5GHz (15W) on-board SoC with DVI-I/HDMI™/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM, iRIS-1010 and Audio
NANO-KBN-i1-2101-R10 EPIC SBC supports AMD® 28nm Dual-Core 1.0GHz (9W) on-board SoC with DVI-I/HDMI™/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM, iRIS-1010 and Audio

Package Contents

Package Content
  • 1 x NANO-KBN-i1 single board computer with enclosure heatsink

  • 1 x Audio cable

  • 1 x Power cable

  • 2 x RS-232 cable

  • 1 x QIG (Quick Installation Guide)

  • 2 x SATA with power cable kit
