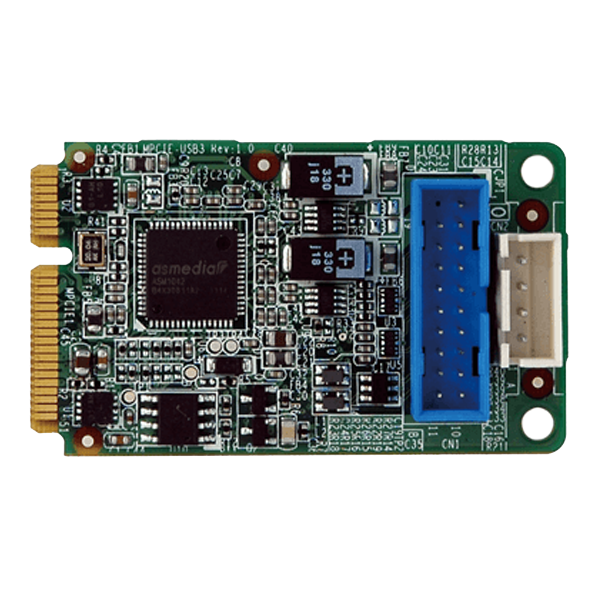

MPCIE-USB3

PCIe Mini U MPCIE-USB3 SB 3.0 Adapter Card

End of Life

End of Life Notice

* Effective Date: 2021/02/24

» Supports two external USB 3.0 type A ports
» USB 3.0 provides up to 5Gbps of transferring rate
» Backward compatible with USB 2.0 and USB 1.0/1.1 devices
» Fully compliant with USB 3.0 rev 1.0 specifications and Intel® xHCI rev 0.96 specifications, with transfer rates up to 5Gbps
» Compliant with PCI Express Mini specification 1.2

Hardware Spec.

Form Factor
Form Factor PCI Express Mini Card
Physical Characteristics
Dimensions (LxWxH) (mm) 50 X 30
Net Weight 70g
Power
Input 1 x 4-pin box header
Power Consumption 5V@0.32A
Power Requirement 5V Power Input
Environment
Operating Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Humidity 5% ~95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant
Card Slot Interface
PCIe Mini card

Ordering Information

MPCIE-USB3-R10 Mini PCI Express USB 3.0 adapter card,RoHs
