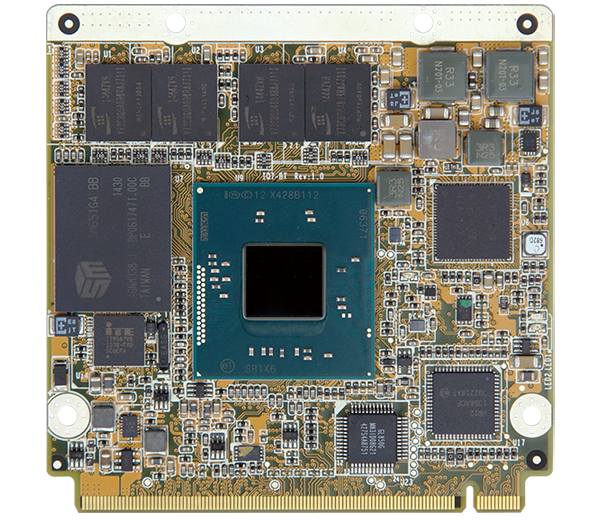

iQ7-BTW2/iQ7-BT

Qseven Rev. 2.0 Module Supports 4th generation Intel® Atom™ Processor

  • Overview

    ● 22nm Intel® Atom™ on-board SoC supported
    ● Qseven connector pinout according to Qseven Specification Revision 2.0
    ● Supports 2 GB 1066/1333 MHz DDR3L memory (4 GB optional)
    ● Optional soldered-down 2 GB~64 GB SSD
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Environment
      Humidity5% ~ 95%, noncondensing
      Operating Temperature-40°C ~ 85°C
      I/O Interface
      DisplayDual independent display
      1 x 18/24-bit dual-channel LVDS by
      CH7511B DP to LVDS converter (up to
      1920x1200@60Hz)
      1 x DDI (DP/HDMI, max. resolution
      2560x1600/1920x1080)
      Ethernet: Intel® I210 GbE
      EthernetIntel® I210 GbE controller
      Expansion3 x PCIe x1 signal to baseboard
      I/O Interface
      I/O Interface1 x USB 3.0
      6 x USB 2.0
      Power
      Power consumptionPower Consumption
      3.3V@0.13A, 5V@0.13A, 12V@1.35A,
      5VSB@0.12A
      (Intel® Atom™ E3845 CPU with 2 GB onboard
      memory)
      System
      CPUIntel® Atom™ E3845 on-board SoC
      (1.91GHz, quad-core, 2MB cache,
      TDP=10W)
      Memory Max.2 GB soldered-down 1066/1333 MHz
      DDR3L memory (up to 4 GB)
      Storage2 x SATA 3Gb/s signal to baseboard
      Optional soldered-down 4 GB SSD (SATA
      port 2)
      Watchdog Timer
      Watchdog TimerSoftware programmable supports 1~255
      sec. system reset (form EC)
    • Ordering Info.

      Item No. Description
      iQ7-BT-E38251W2-R10Qseven® Rev. 2.0 module supports Intel® Atom™ dual-core processor E3825 (6W), On-board 2GB DDR3L, LVDS, DDI, GbE, SATA 3Gb/s, USB 3.0, SDIO, Audio, -40°C~85°C and RoHS
      iQ7-BT-E38251-R10Qseven® Rev. 2.0 module supports Intel® Atom™ dual-core processor E3825 (6W), On-board 2GB DDR3L, LVDS, DDI, GbE, SATA 3Gb/s, USB 3.0, SDIO, Audio and RoHS
      iQ7-BT-E38451-R10Qseven® Rev. 2.0 module supports Intel® Atom™ quad-core processor E3845 (10W), On-board 2GB DDR3L, LVDS, DDI, GbE, SATA 3Gb/s, USB 3.0, SDIO, Audio and RoHS
      iQ7-BT-E38451W2-R10Qseven® Rev. 2.0 module supports Intel® Atom™ quad-core processor E3845 (10W), On-board 2GB DDR3L, LVDS, DDI, GbE, SATA 3Gb/s, USB 3.0, SDIO, Audio, -40°C~85°C and RoHS
