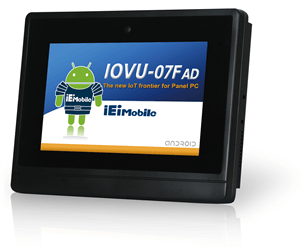

7” RISC-based Panel PC

End of Life

End of Life Notice

* Effective Date: 2018/04/30

» 7” LED Backlight Color Active Matrix TFT
» Projected Capacitive Touchscreen
» Freescale™ i.MX6 Cortex™-A9 Quad-Core (1.0GHz) CPU
» Android 4.2 OS
» One 10/100/1000Mbps Ethernet
» Optional Wi-Fi+BT, Camera
» CAN 2.0b, 4 x DIO (configurable by software)

Hardware Spec.

Humidity 5%~90%, non-condensing
Operating Temperature 0˚C ~ 50˚C
Brightness (cd/m2) 500
Resolution 1024(W) x 600(H) WSVGA
Size 7"
Viewing Angle (H-V) 75/75/70/75 Deg.
CPU Freescale™ i.MX6 Cortex™-A9 quad-core 1.0GHz
Memory Ext. 4GB eMMC iNAND
On-board Memory 1GB DDR3 SDRAM
Touch Screen 2 point projected capacitive
I/O Interface
I/O Interface 1 x WIFI(802.11b/g/n (optional))
1 x LAN(10/100/1000 Mbps)
1 x RS-232((DB-9))
1 x RS-422/485((DB-9))
1 x Speaker(1.5W)
2 x USB 2.0

Ordering Information

IOVU-07F-AD-ET-R11 7" TFT-LCD; Freescale i.MX6 Cortex-A9 QC 1GHz; CAN; Android 4.2
IOVU-07F-AD-WBC-R11 7" TFT-LCD; Freescale i.MX6 Cortex-A9 QC 1GHz; CAN; WiFi/Bluetooth; Camera; Android 4.2
IOVU-07F-AD-WBC-POE-R11 7”TFT-LCD; Freescal i.MX6 Corte-A9 QC 1GHz; CAN; Wi-Fi/Bluetooth; Camera; POE 802.3at; Android 4.2
