IMB-Q870

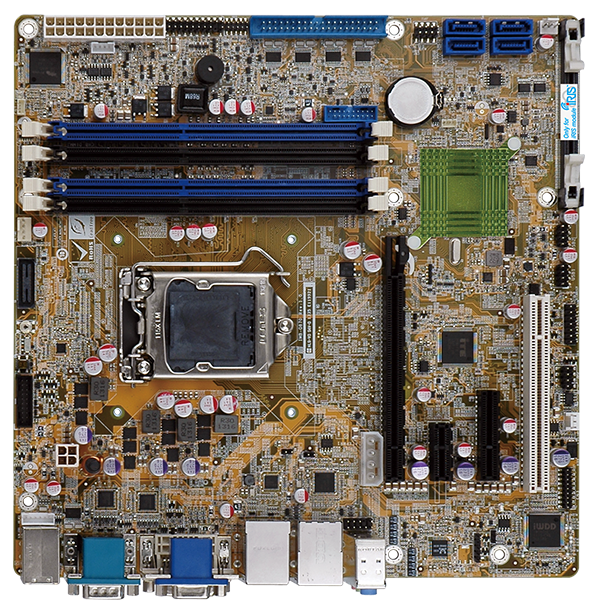

microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87

End of Life

End of Life Notice

* Effective Date: 2023/09/21

» LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
» Dual-channel DDR3 1600/1333 MHz supported
» Intel® PCIe GbE with Intel® AMT 9.0 support
» Support triple display via HDMI™, DVI, VGA and iDP
» Support PCI Express generation 3.0 at 8GT/s I/O bandwidth
» USB 3.0 and SATA 6Gb/s supported
» IEI jumper-less function
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Support IPMI 2.0 via iRIS-2400 module

Hardware Spec.

System
CPU LGA1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
Chipset Intel® Q87
Memory Four 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
Memory Max. 32GB
Physical Characteristics
Dimensions (LxWxH) (mm) 244 X 305
Net Weight 700g
Storage
Storage 6 x SATA :6Gb/s (RAID 0/1/5/10 supported)
1 x mSATA :colay SATA 6
I/O Interface
Display Output 1 x VGA :up to 1920x1200@60Hz
1 x DVI-D :up to 2560x1600@60Hz
1 x HDMI™ :up to 2560x1600@60Hz
1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Audio Description: Realtek ALC662 HD Audio codec supports 5.1-channel
1 x Line in :on rear IO
1 x Line out :on rear IO
1 x Mic :on rear IO
1 x Front Audio :2x5 pin
I/O Interface 1 x External RS-232
4 x Internal RS-232 :2x20 pin, p=2.54
1 x Internal RS-422/485 :1x4 pin, p=2.54
4 x External USB 2.0
2 x External USB 3.2 Gen1x1
4 x Internal USB 2.0 :2x4 pin, p=2.54
2 x Internal USB 3.2 Gen1x1 :2x10 pin, p=2.0
2 x PS/2 :1 X 1X6 pin
Expansion 1 x PCIe x16 :Gen 3
1 x PCIe x4
1 x PCIe x1
4 x PCI Slot
Other Features
iRIS 1 X iRIS-200 slot
TPM 2x10 pin
Power
Power Consumption 3.3V@0.53A, 5V@4.96A, 12V@0.12A, Vcore_12V@3.95A, 5VSB@0.18A
(Intel® Core™ i7-4770K 3.90 GHz CPU with 16 GB (4x4 GB) 1333 MHz DDR3 memory)
Power Supply Support ATX mode
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

IMB-Q870-i2-R10 Micro ATX Motherboard supports 22nm LGA1150 Intel Core™ i7/i5/i3/Pentium and Celeron CPU per Intel Q87,DDR3,HDMI™/ DVI-D/ VGA / DP,Dual Intel PCIe GbE,USB 3.0,SATA 6Gb/s,Six Serial Ports, Audio, iRIS-2400 and RoHS

Package Contents

Package Content
  • 1 x IMB-Q870-i2 single board computer

  • 2 x SATA cable

  • 1 x I/O shielding
