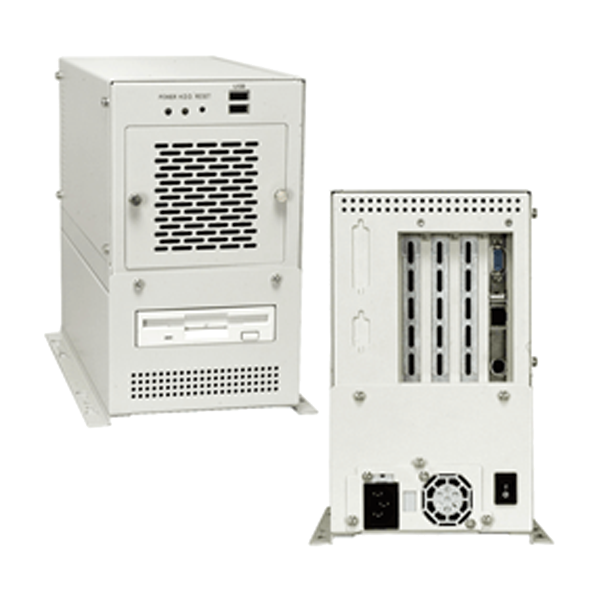

• Overview

    ● Two USB ports on the front panel
    ● One 8 cm cooling fan with replaceable filter
    ● Supports one 3.5” HDD or two 2.5” HDDs
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      SBC Form Factor Half-size, slot CPU cards
      I/O Interface
      I/O Openings 1 x LPT, 1 x COM
      I/O Ports 2 x USB
      Expansion Slots
      Expansion Slots 4 slots
      System
      Cooling method / System Fan 1 x 8 cm
      Drive Bays 1 x Front-accessible 3.5" and 1 x 3.5" HDD
      or 1 x Front-accessible 3.5" and 2 x 2.5" HDD
      Indicator&Buttons
      Buttons Power switch, reset
      Indicators Power, HDD
      Physical Characteristics
      Construction Heavy duty metal
      Color
      Color W: White
      Dimensions
      Dimensions 269 mm x 140 mm x 230 mm(DxWxH)
      Weight
      Weight 3.9 kg/6.1 kg(Net/Gross)
      Environment
      Operating Temperature 0°C ~ 50°C
      Humidity 10% ~ 90%
    • Ordering Info.

      Item No. Description
      PAC-42GHWPX-R11/A618C 4-Slot Half size Chassis,White,1x 8cm fan,with ACE-A618C-RS-R10(180W),RoHS
