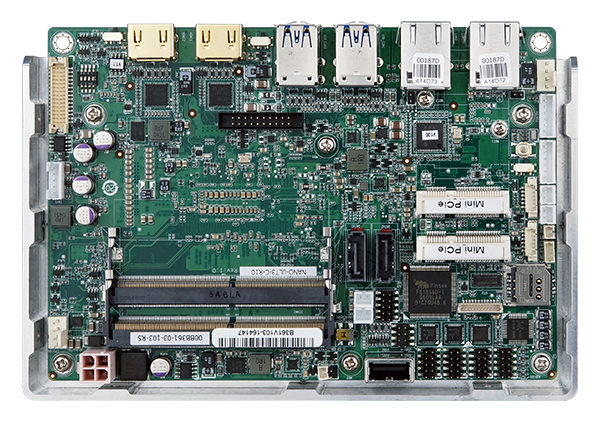

NANO-ULT3

EPIC SBC supports Intel® 14nm 6th Generarion Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT)

  • Overview

    ● EPIC SBC with 6th generation Intel® ULT proccessor supports dual-channel DDR4 SODIMMs
    ● Triple independent display support
    ● Easy assembly heat spreader for thermal management
    ● Full-size PCIe Mini slot with SIM sockets for 3G/LTE expansion
    ● COM, USB 3.0, SATA 6Gb/s, mSATA, eMMC 5.0 and audio support
    ● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Cooler
      CPU CoolerN/A
      Display
      DisplayTriple independent display
      2 x HDMI (up to 4096x2160@24Hz)
      1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
      Environment
      Humidity5% ~ 95%, non-condensing
      Operating Temperature-20°C ~ 60°C
      Expansion Slots
      Expansion Slots1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
      1 x Half-size PCIe Mini card slot
      I/O Interface
      AudioRealtek ALC662 HD codec
      1 x Analog audio (2x5 pin)
      Digital I/O1 x 8-bit digital I/O (2x5 pin)
      EthernetLAN1: Intel® I219-LM PHY with Intel® AMT 11.0 supported
      LAN2: Intel® I211-AT PCIe GbE controller
      I/O Interface
      I/O Interface4 x USB 3.0
      3 x Internal USB 2.0
      Power
      Power consumption12V@2.48A (Intel® Core™ i3-6100U CPU with two 8 GB memory)
      Storage
      Storage1 x 8 GB eMMC (optional)
      2 x SATA 6G/s with 5V SATA power connector (RAID 0,1)
      System
      CPU6th generation Intel® mobile ULT on-board SoC
      Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
      Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
      Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
      Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)
      Memory Max.Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max.
      32 GB)
      Watchdog Timer
      Watchdog TimerSoftware programmable supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      NANO-ULT3-i7-R10EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i7-6600U (15W) on-board Processor (ULT) with HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS
      NANO-ULT3-C-R10EPIC SBC supports Intel® 14nm 6th Generation Mobile Celeron® 3955U (15W) on-board Processor (ULT) with HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS
      NANO-ULT3-i3-R10EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i3-6100U (15W) on-board Processor (ULT) with HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS
      NANO-ULT3-i5-R10EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT) with HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS
    • Package Contents

      • 1 x NANO-ULT3 single board computer with heatspreader

      • 1 x Audio cable

      • 1 x Power cable

      • 1 x One Key Recovery CD

      • 1 x RS-232 cable

      • 1 x QIG (Quick Installation Guide)
