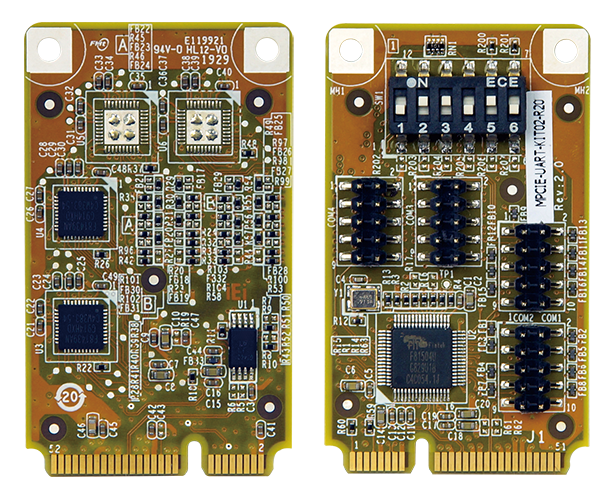

MPCIE-UART-KIT02

PCI Express Mini Card Supports Dual-port RS-232/422/485, 16-bit GPIO, Full Size

» PCI Express Mini supports dual RS-232/422/485 and 16-bit GPIO ports
» 128 bytes transmit/receive FIFO
» High-speed 16C550/16C650/16C750/16C850 compatible UARTs
» Baud rate supports 115.2K, max. up to 1.5M
» All GPIO supports digit IO for input/output control, output data control, input status
» Support High/Low Level/Pulse, Open Drain/Push Pull function selection

Hardware Spec.

Form Factor
Form Factor PCI Express Mini Card
Physical Characteristics
Dimensions (LxWxH) (mm) 51 X 30
Net Weight 50g
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -10°C ~ 70°C
Humidity 5% ~95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant
Card Slot Interface
PCIe Mini card

Ordering Information

MPCIE-UART-KIT02-R20 PCI Express Mini supports Dual RS-232/422/485 , 16 bit GPIO module, Full size, RoHs
E-MPCIE-UART-KIT02-R20 PCI Express Mini supports Dual RS-232/422/485 , 16 bit GPIO module, Full size, for E-Window, RoHs
