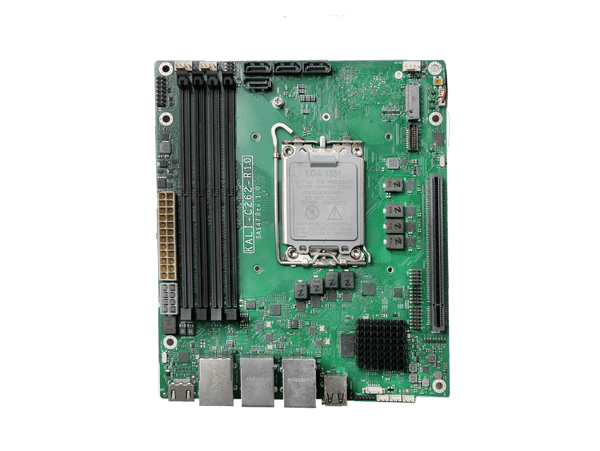

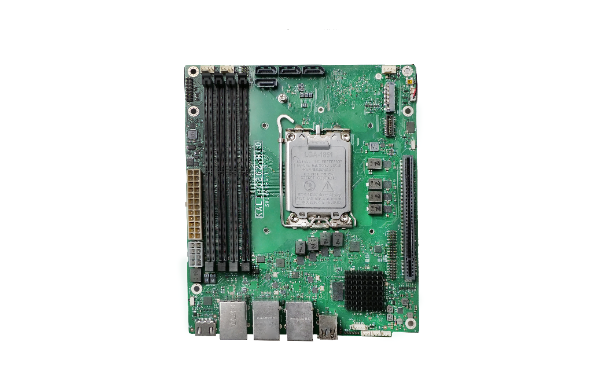

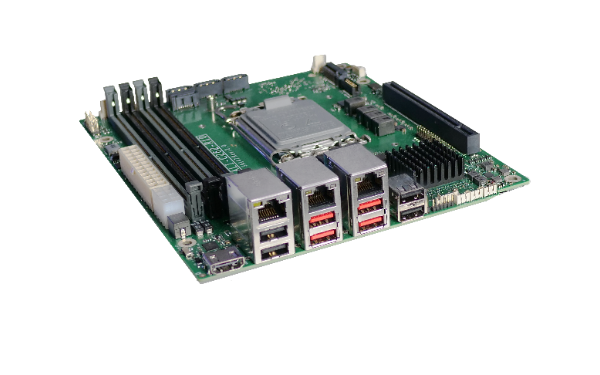

» Extended-ITX SBC supports LGA1700 Xeon® E-2400 Processor and Pentium® Gold G7400 / G7400T Processor
» Four 288-pin 5200 MHz Dual-Channel DDR5 ECC UDIMMs supported up to 192GB
» 1 x HDMI™ 1920x1200@60Hz (from onboard AST2600)
» Support double Intel® I226V 2.5GbE controller
» Support PCIe Gen4 x16 and M.2 M key expansion
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Mini-ITX SBC |
| System | |
|---|---|
| CPU | LGA1700 socket supports Xeon® E-2400 Processor and Pentium® Gold G7400 / G7400T Processor (up to 95W TDP CPU) |
| Memory | Four 288-pin 5200 MHz Dual-Channel DDR5 ECC UDIMMs |
| Memory Max. | up to 192GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x4 pin) |
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 170 x 200mm |
| Net Weight | GW:1200g / NW:700g |
| Storage | |
|---|---|
| Storage | 4 x SATA : 6Gb/s |

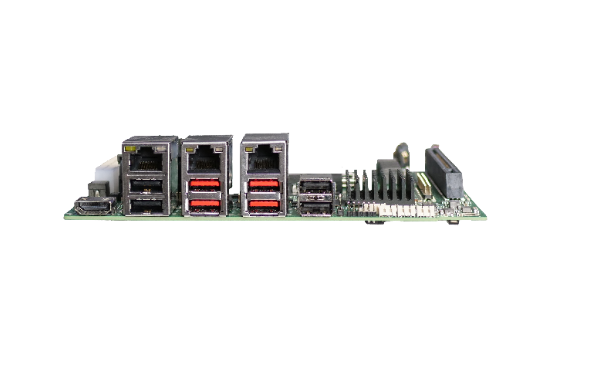

| I/O Interface | |
|---|---|
| Display Output | 1 x HDMI™ : 1920x1200@60Hz (from onboard AST2600) |
| Ethernet | 3 x LAN - LAN1: Intel® I226V 2.5GbE controller LAN2: Intel® I226V 2.5GbE controller LAN3: IPMI LAN |
| I/O Interface | 1 x DIO : 12-bit digital I/O (2x7 pin) |
| 4 x External USB 2.0 : Type-A | |
| 4 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| 1 x I²C : 1x4 pin, p=1.25 | |
| 2 x Internal RS-232/422/485 : 2x5 pin, P=2.0 (RS-485 support AFC) | |
| 2 x Internal USB 2.0 : 2x4 pin, P=2.0 | |
| Expansion | 1 x PCIe x16 : with x16 Signal Gen4 |
| Other Features | |
|---|---|
| TPM | 1 x TPM 2 x10 pin, support Intel PTT |
| Power | |
|---|---|
| Power Consumption | 3.3V@1.32A, 5V@8.05A, 12V@6.18A, 5VSB@0.27A (Intel Xeon E-2456 CPU with 48GB 5600 MHz DDR5 memory) |
| Power Supply | Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
|---|---|
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| Card Slot Interface | |
|---|---|
| M.2 | 1 x M.2 M Key 2280 Gen4 x4 |
Ordering Information
| KALI-C262-R10 | Extended-ITX SBC supports LGA1700 Xeon® E-2400 Processor and Pentium® Gold G7400 / G7400T Processor, DDR5 ECC UDIMM,Aspeed® AST2600, dual 2.5GbE LAN, USB 3.2, M.2, SATA 6Gb/s and RoHS |
