» Intel® Xeon® 600 Processors for Workstation (Code Name: Granite Rapids-WS )
» 8 x DDR5 RDIMM Slots
» 2 x 1GbE RJ45 LAN ports
» 2 x 10GbE SFP+ LAN ports
» 2 x internal M.2 2280 M key slot
» 2 x PCIe Gen5 x16 FHFL
» 2 x Internal 2.5” U.2 SSD Removable Trays
» 1 x M.2 socket B key support IRIS2 BMC mudule
» CRPS redundant PSU (Hot Swap, and field replaceable design)
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | 2U rackmount |
| System | |
|---|---|
| CPU | Intel® Xeon® 600 Processors for Workstation (Code Name: Granite Rapids-WS |
| Chipset | DDR5 6400 MT/s RDIMM |
| Memory | Based on DIMM capacity |
| Memory Max. | Based on DIMM capacity |
| Cooling method / System Fan | 3 x System fans |
| Physical Characteristics | |
|---|---|
| Rack Height | 2U |
| Dimensions (LxWxH) (mm) | 587 x 438 x 88 |
| Net Weight | 22 Kgs |
| Storage | |
|---|---|
| Storage | 2 x 2.5” SSD/HDD Bay : support PCIe Gen4 x4 |
| I/O Interface | |
|---|---|
| Ethernet | 2 x LAN : 1GbE RJ45 LAN ports |
| 2 x SFP+ : 10GbE SPF+ LAN ports | |
| I/O Interface | 2 x Console port(s) : RJ45 ports/ USB type C |
| 2 x USB 3.0 : Type-A | |
| Expansion | 2 x M.2(NGFF) : 2280 M Key |
| 2 x PCIe x16 : PCIe Gen5 x 16 FHFL | |
| Other Features | |
|---|---|
| IPMI | 1 x M.2 B Key Socket support IEI iRIS2 IPMI module 1 x 1 GbE RJ45 for IPMI port |
| TPM | 1 x TPM 2.0 pin header |
| Power | |
|---|---|
| Power Supply | 2000W CRPS Redundant Power |
| Environment | |
|---|---|
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -10°C ~ 50°C |
| Humidity | 5% ~ 90% non-condensing |
| Certifications | |
|---|---|
| Safety & EMC | By customer request |
| OS Compatible | |
|---|---|
| OS Compatible | Ubuntu, Linux based OS |
Ordering Information
| PUZZLE-8010-R-R10 (request by order) |

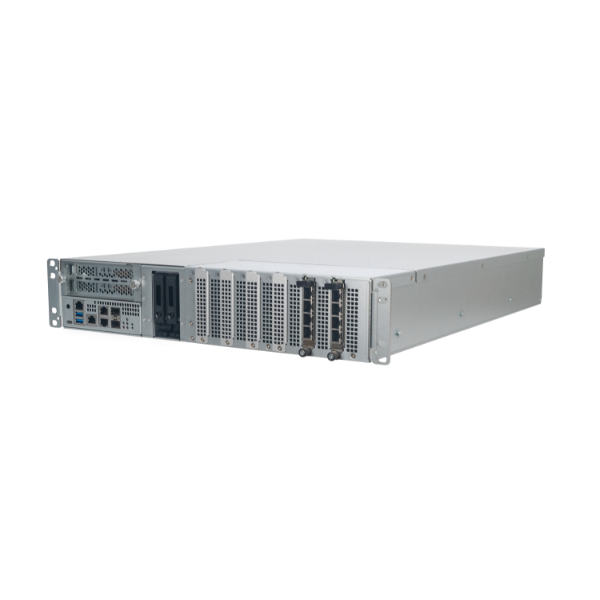

2U rackmount Network Appliance support Intel® Intel Granite Rapids – XEON-W (Xeon® 600), Intel® W890 Series chipset, 8x DDR5 RDIMM, 2x 1GbE RJ45, 2x 10GbE SFP+ |
