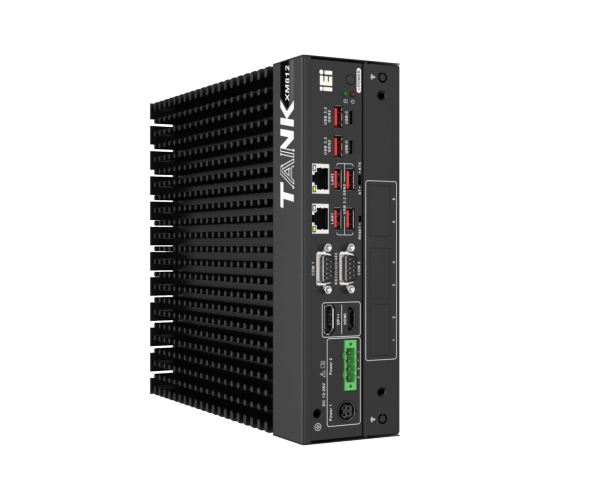

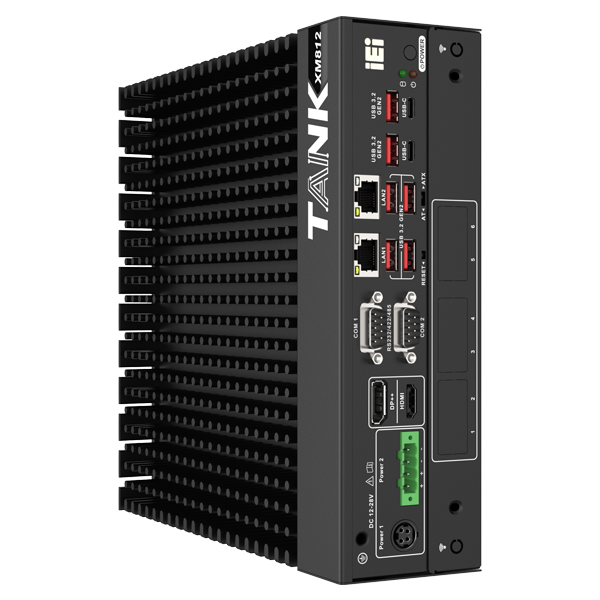

TANK-XM812

High-Performance AMD Ryzen™ 7000/8000 Series AM5 Processor, Fanless Embedded Computer

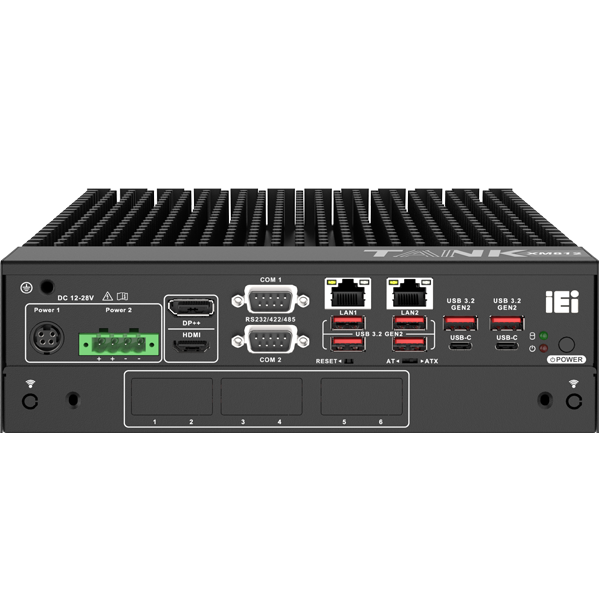

Front IO

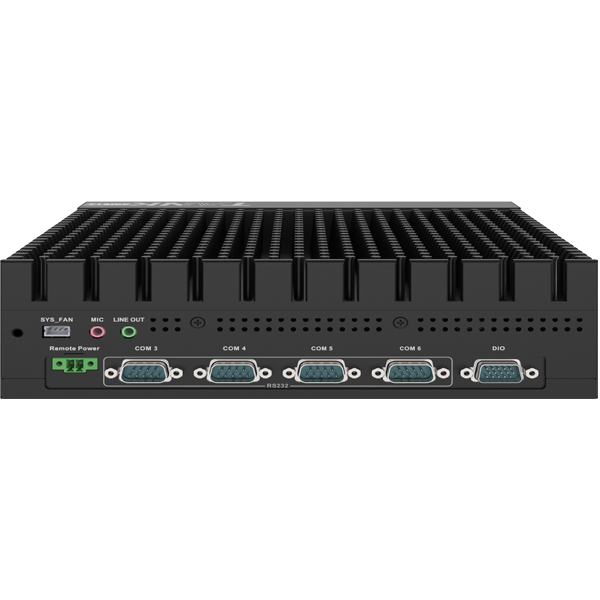

Back IO

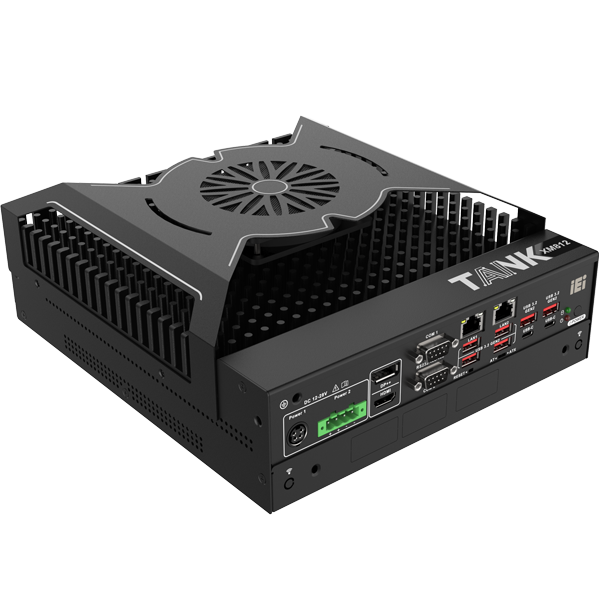

Fan Kit
  • Front IO
  • Back IO
  • Fan Kit
» Supported CPUs:
AMD Ryzen™ 7000/8000 Series AM5 Processor
AMD Ryzen™ 7 8700G 4.2GHz (up to 5.1GHz, 8-core, 65W)
AMD Ryzen™ 5 8600G 4.3GHz (up to 5.0GHz, 6-core, 65W)
» 2 x 2.5GbE ports
» Multiple USB ports and serial ports
» Multiple internal expansion boards for flexible selection
» Various optional backplanes and chassis
» CE/FCC compliant

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    AMD Ryzen™ 7000/8000 Series AM5 Processor
    AMD Ryzen™ 7 8700G 4.2GHz (up to 5.1GHz, 8-core, 65W)
    AMD Ryzen™ 5 8600G 4.3GHz (up to 5.0GHz, 6-core, 65W)
  • Chipset:
    AMD B650
  • System Memory:
    2 x SO-DIMM DDR5 5200 (8GB pre-installed) (up to 96GB)
  • Power:
    DC Jack: 12 V~28 V DC
    Terminal Block: 12 V~28 V DC
    Consumption: 12V @ 6.95A (AMD Ryzen™ 7 8700G with 8GB memory)
I/O Interface
I/O Ports
  • USB:
    6 x USB 3.2 Gen2
  • Ethernet:
    2 x RJ-45: 2.5 GbE by Intel® I226V (colay I226LM)
  • COM Port:
    2 x RS-232/422/485
    4 x RS-232
  • Digital I/O:
    12-bit Digital I/O (6-in/ 6-out)
  • Display:
    1 x HDMI
    1 x DP++
    2 x USB Type-C (Display + USB 3.2 Gen2)
  • Audio:
    1 x Mic
    1 x Line-out
  • TPM:
    1 x 20pin TPM connector (Optional TPM-IN03 module)
  • Watchdog Timer:
    Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2280 M-key (PCIe Gen4 x4)
    1 x 2230 A-key (USB 2.0 + PCIe Gen3 x1)
  • Backplane: Optional
System
Cooling method / System Fan Fanless
4-pin external system fan connector
Drive Bays 2 x 2.5” SATA 6Gb/s HDD/SSD bay (RAID 0/1 supported)
Indicator&Buttons
Buttons 1 x Power button
1 x Reset button
1 x AT/ATX switch
Indicators 1 x Power LED (green)
1 x HDD LED (yellow)
Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Black
Dimensions
Dimensions 230.6 x 255 x 68.7
Weight
Weight 3.18/5 kg
Environment
Operating Temperature -20°C ~ 60°C (CPU TDP50W & SSD)
-20°C ~ 50°C (CPU TDP65W & SSD)
Humidity 10% ~ 95% non-condensing
Operating Vibration IEC68-2-27 half-sine, 5G, 11ms, 100 shocks (With SSD)
Operating Shock Random Vibration Mode, MIL-STD-810H 514.8C-I (With SSD)
Safety & EMC CE/FCC compliant
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

TANK-XM812-87AC-R10 Ruggedized Fanless embedded system with AMD Ryzen™ 5 8700G, (up to 5.1 GHz, 8 Core, TDP 65W), 8GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1, HDMI/DP/USB4, 12~28V DC, RoHS
TANK-XM812-85AC-R10 Ruggedized Fanless embedded system with AMD Ryzen™ 5 8600G, (up to 5.0 GHz, 6 Core, TDP 65W), 8GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1, HDMI/DP/USB4, 12~28V DC, RoHS

Package Contents

Package Content

  • 1 x Wall mounting kit

  • 1 x Screw pack

  • 2 x Terminal block

  • 1 x SATA cable
