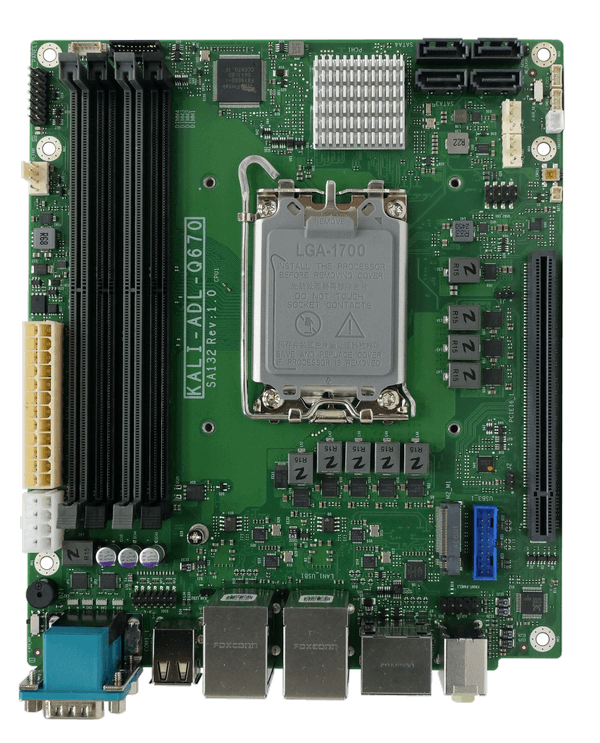

The KALI-ADL-Q670 is an industrial SBC that brings high-end system
capabilities into a compact 200 × 170 mm Extended-ITX footprint. It
supports up to 125 W 12th, 13th, and 14th Gen Intel® Core™ processors
(LGA1700) and up to 192 GB of DDR5 memory, delivering
workstation-class compute density in a space-constrained form
factor.
With PCIe x16 Gen4 expansion, dual 2.5GbE LAN, rich USB and serial
interfaces, and dual 4K display outputs, the KALI-ADL-Q670 gives
system integrators a single board that can scale from advanced edge
controllers to AI vision and data-intensive industrial applications,
while maintaining the reliability required for 24/7 operation.
Intel® 12th/13th/14th
Generation Core™ i9/i7/i5/i3
Extended-ITX
200 × 170 mm Form Factor
Quad DDR5 5200 MHz
UDIMM Slots
Dual Intel® I226-V
2.5 GbE LAN
PCIe x16 Gen 4 + M.2
(PCIe Gen 3 ×4)
Wide Temperature Operation
-10 °C ~ 60 °C
The KALI-ADL-Q670 is engineered around Intel®'s LGA1700 socket architecture, supporting 12th, 13th, and 14th Gen Core™ processors with up to 125 W TDP. Combined with the Intel® Q670 chipset, it provides exceptional multi-core performance, PCIe Gen 4 bandwidth, and four 5200 MHz Dual-channel DDR5 memory for compute-intensive industrial and AI workloads. Its extended-ITX layout enhances power delivery and cooling capacity, enabling sustained full-load stability that typical Mini-ITX boards cannot achieve.
Supports Intel® Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors on a single motherboard, allowing system builders to cover entry-level to high-end models without changing the hardware design.

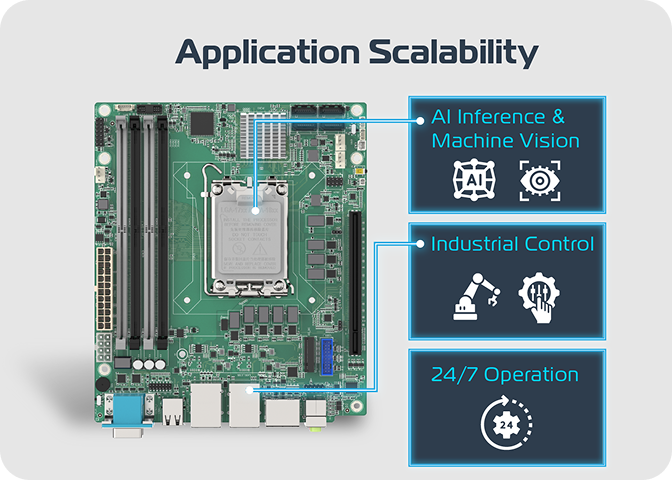

High multi-core performance and large DDR5 memory capacity enable the platform to handle AI inference, machine vision, and industrial control tasks that require both processing headroom and long-term 24/7 operation.

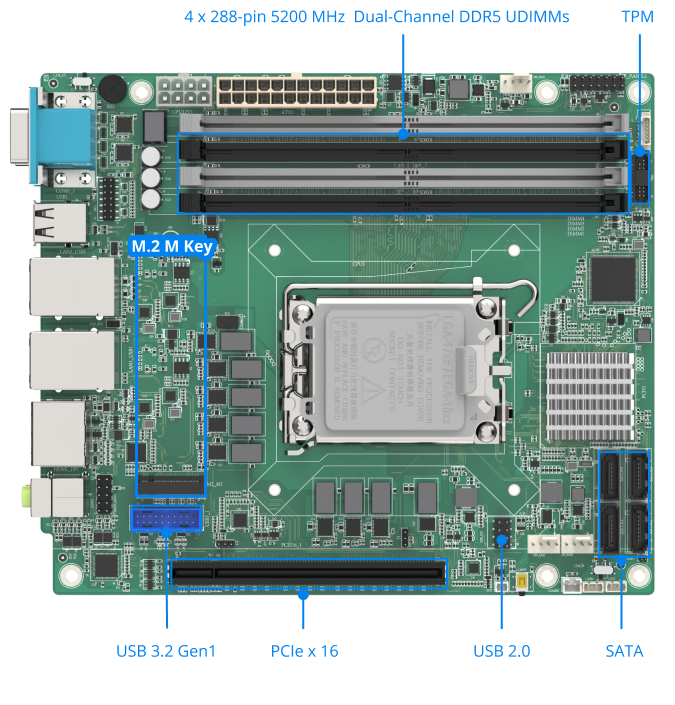

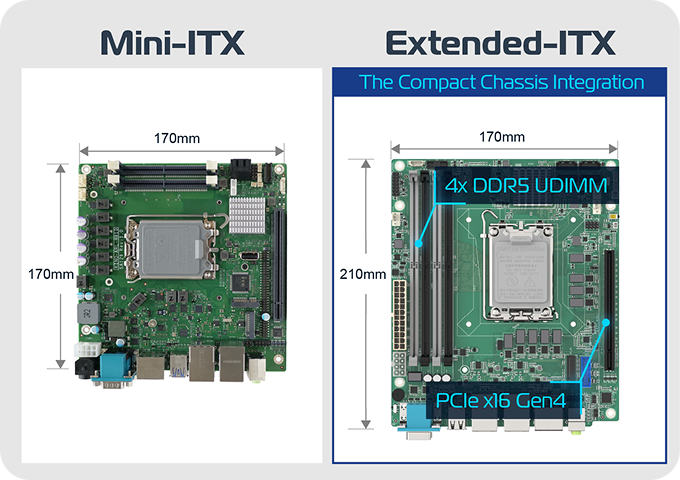

Compared with the traditional 170 × 170 mm Mini-ITX form factor, the 200 × 170 mm Extended-ITX layout of the KALI-ADL-Q670 provides additional board space for four full-size DDR5 UDIMM slots and a full-bandwidth PCIe x16 Gen4 slot. The extended area around the CPU allows the VRM, heatsink, and vertically oriented DIMMs to be aligned with the main chassis airflow, improving cooling efficiency and enabling compact edge systems to stably run high-power Intel® Core™ processors.
This Extended-ITX approach lets small edge platforms deliver the memory capacity, expansion options, and power delivery typically found only in larger industrial motherboards.

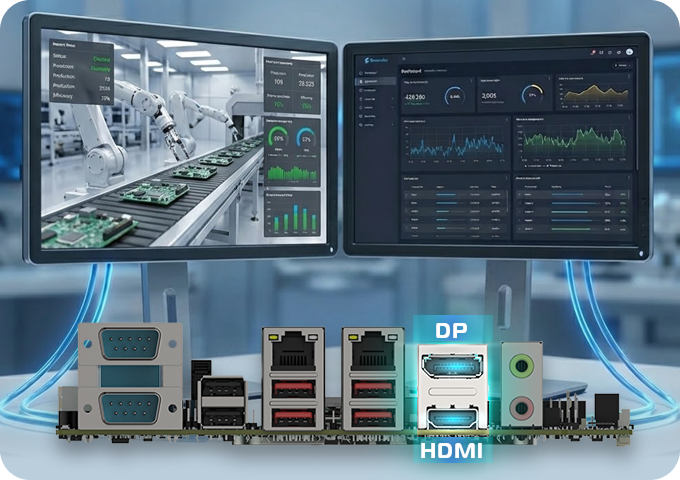

Driven by integrated Intel® UHD Graphics, the KALI-ADL-Q670 supports dual independent 4K displays via DisplayPort 1.4a and HDMI 2.0b interfaces (up to 4K @ 60 Hz on each output).
This configuration enables engineers and system integrators to deploy high-resolution monitoring, HMI, or inspection panels with smooth and precise image rendering in industrial environments.

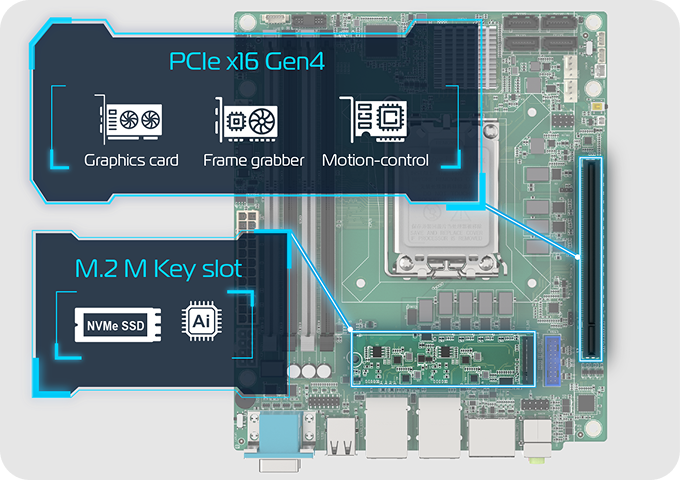

Integrate a PCIe x16 slot with Gen4 signal on its Extended-ITX board, so even in compact systems it can host a full-bandwidth GPU, frame grabber, motion-control, or other high-performance add-on card without requiring an extra backplane.
Together with the onboard M.2 M Key (PCIe Gen3 x4, 2280) slot for NVMe SSDs or AI accelerator modules, the same motherboard can be configured as an AI vision node, high-speed data logger, or general-purpose edge controller simply by changing plug-in modules.

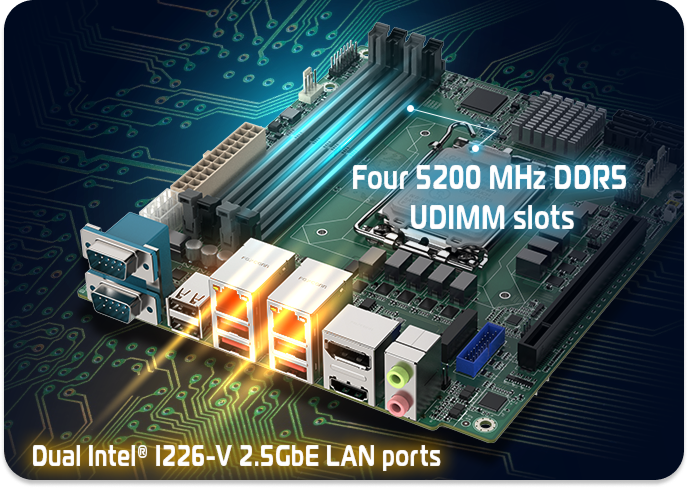

With four 5200 MHz DDR5 UDIMM slots supporting up to 192 GB, the KALI-ADL-Q670 provides high memory capacity for data-intensive edge workloads such as AI inference, machine vision, and industrial control.
Dual Intel® I226-V 2.5GbE LAN ports deliver reliable high-speed Ethernet connectivity for sensors, cameras, and upstream systems in industrial networks.
Designed for industrial deployment, the KALI-ADL-Q670 supports an operating temperature range of -10 °C to 60 °C. This wide-temperature tolerance helps maintain stable system operation in control cabinets, factory floors, or edge enclosures where ambient conditions are difficult to control.
The KALI-ADL-Q670 combines high CPU performance, large DDR5 memory capacity, and rich expansion options to support a wide range of industrial and edge scenarios.

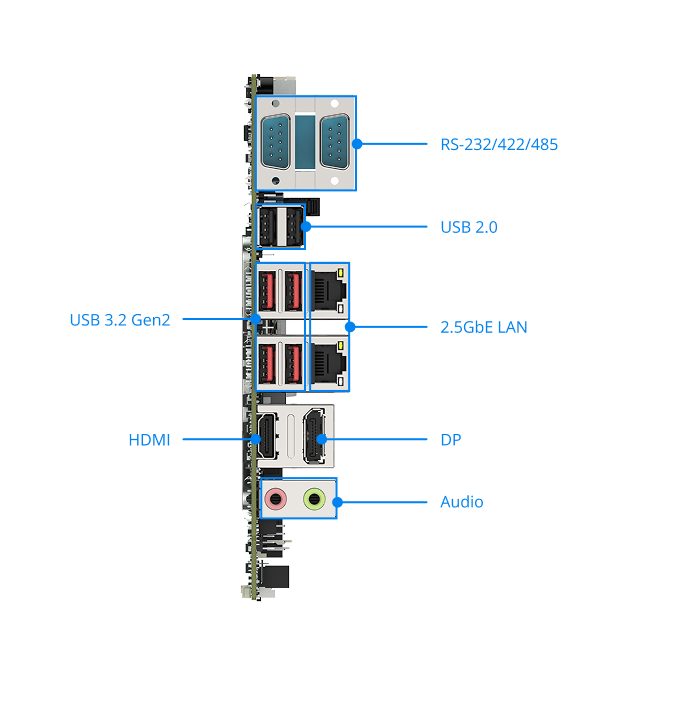

| Form Factor | |
|---|---|
| Form Factor | Mini-ITX SBC |
| System | |
|---|---|
| CPU | LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/ Celeron® Processor (up to 125W TDP CPU) |
| Memory | Four 288-pin 5200 MHz Dual-Channel DDR5 UDIMMs |
| Memory Max. | up to 192GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x4 pin) |
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 200mm x 170mm |
| Net Weight | GW: 900g / NW: 400g |
| Storage | |
|---|---|
| Storage | 4 x SATA : 6Gb/s |
| I/O Interface | |
|---|---|
| Display Output | 1 x Display Port : DP 1.4a (up to 4K @60Hz) |
| 2 x HDMI™ : HDMI 2.0b (up to 4K @60Hz) | |
| Ethernet | 2 x LAN - LAN1: Intel® I226V 2.5GbE controller LAN2: Intel® I226V 2.5GbE controller |
| Audio | HD Audio - Realtek ALC888S HD codec 1 x Audio Jack (Line-out, Mic-in) on rear IO 1 x Analog audio (2x5 pin) |
| I/O Interface | 1 x DIO : 12-bit digital I/O (2x7 pin) |
| 2 x External RS-232/422/485 : RS-485 support AFC | |
| 2 x External USB 2.0 : Type-A | |
| 4 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| 1 x I²C : 1x4 pin | |
| 2 x Internal USB 3.2 Gen1x1 : 2x10 pin, P=2.00, 5Gb/s | |
| Expansion | 1 x PCIe x16 : with x16 Signal Gen4 |
| Other Features | |
|---|---|
| TPM | 2x10 pin |
| Power | |
|---|---|
| Power Consumption | 3.3V@0.98A, 5V@4.9A, 12V@5.75A, 5VSB@0.36A (Intel® Core™ i9-12900K CPU with 48 GB 5600 MHz DDR5 memory, EuP mode disabled) |
| Power Supply | Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
|---|---|
| Operating Temperature | -10 ~ 60℃ |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Card Slot Interface | |
|---|---|
| M.2 | 1 x M.2 M Key (PCIe X4 gen3 2280) |
| KALI-ADL-Q670-R10 | Extended-ITX SBC supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR5, Dual displays, dual 2.5GbE LAN, USB 3.2, SATA 6Gb/s and RoHS |
|
