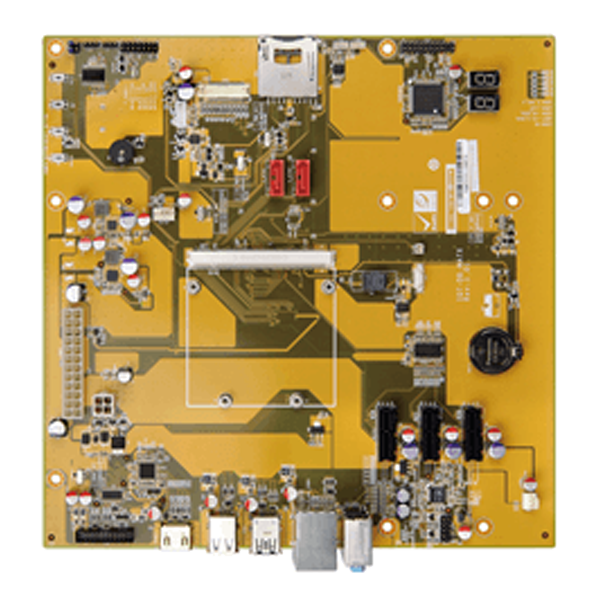

iQ7-DB-MATX

Baseboard for Qseven Rev. 2.0 Module

» mATX form factor baseboard for Qseven Rev. 2.0 module
» Supports three PCIe x1
» 18/24-bit dual-channel LVDS
» Supports iRIS-2400/iRIS-2100

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 243.8 X 243.8
Storage
Storage 2 x SATA
1 x SD/MicroSD card
I/O Interface
Display Output 1 x HDMI™
1 x LVDS
1 x iDP
Ethernet 1 x LAN :RJ45
Audio Description: Realtek ALC662 HD Audio codec
1 x Line in
1 x Line out
1 x Mic
I/O Interface 5 x External USB 2.0
1 x External USB 3.2 Gen1x1
Expansion 3 x PCIe x1
Other Features
TPM 2x10 pin
Power
Power Supply Support AT/ATX mode
Environment
Operating Temperature -40°C ~ 85°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

iQ7-DB-MATX-R10 Base Board for Qseven® Rev. 2.0 module
