» Twelve 3.0V/600F supercapacitors
» 12/19/24 VDC Adaptive input/output.
» Maximum 150W load 2.6V@30°C lasting 100 sec
» The standard 60W load 2.6V@30°C lasting 280 sec
» -40°C to 60°C wide temperature environment
» 500,000 charge-discharge life cycles
» Long supercapacitor lifetime, up to 10 years
» Intuitive power management software for easier management
» Provide power-off shutdown service through software/hardware
Hardware Spec.
| Environment | |
|---|---|
| Operating Temperature | -40°C ~ 60°C |
| Storage Temperature | -40°C ~ 70°C |
| Input | |
| Voltage | 12V or 19V or 24V ±10% |
| Output | |
| Voltage | 12V or 19V or 24V ±10% |
| General | |
| Watt | 150W |
| Dimensions | 160.2 x 125 x 110 |
| Output Connector |
1 x 4 Pin DC JACK 1 x 4 Pin Terminal block power input 1 x 4 Pin Terminal block power output 1 x 4 Pin Terminal block (relay & power button) 1 x USB 2.0 Type-A |
| Weight | |
| Weight | 2.37 / 2.6 kg |
Ordering Information

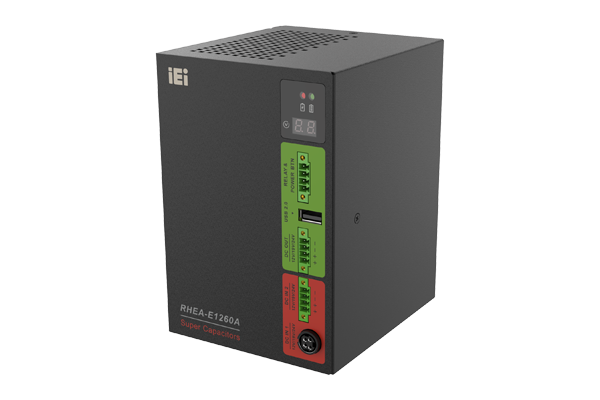

| RHEA-E1260A-R10 | 150W DC/DC Supercapacitor backup system, 12/19/24V Input and Output, 12x 600F@3V Supercapacitor, External |
|---|
Package Contents
| Package Content |
|
|---|
