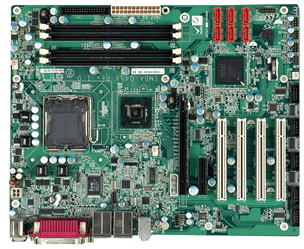

IMBA-Q454

ATX motherboard supports 45nm LGA775 Intel® Core™2 Duo/Quad with a 1333/1066/800 MHz FSB

End of Life

End of Life Notice

* Effective Date: 2017/09/04

» Designed for Intel® Core™2 Quad/Duo processor Q9000/E8000/E7000 series in the LGA775 with a 1333/1066/800 MHz FSB
» Intel® GbE LAN with Intel® AMT 5.0 supported
» Intel® Q45 chipset integrating high-performance graphics with DX10 and OpenGL 2.1. External graphics card with PCIe 2.0 and 1x16 PEG support
» PCIe x16 expansion slot and VGA output for dual display support
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

Display Display
System CPU
Chipset Intel® Q45 + ICH10DO
Memory Max. Four 240-pin 667/800MHz dualchannel
DDR2 SDRAM DIMM
(system max. 16GB)
Storage 6 x SATA 3Gb/s RAID
1 x FDD
CPU Socket LGA775
I/O Interface Ethernet
Digital I/O 8-bit digital I/O (4-bit input/4-bit output)
Audio Realtek ALC888 HD Audio codec
I/O Interface 6 x RS-232
12 x USB 2.0
1 x LPT
1 x Infrared Interface
1 x PS/2 KB & MS
1 x 6-pin wafer for PS/2 KB &
MS
Power Power consumption
Environment Operating Temperature
Humidity 5% ~ 95%, non-condensing
Option iRIS
Expansion Slots Expansion Slots
FSB FSB
Watchdog Timer Watchdog Timer
CPU Cooler CPU Cooler
I/O Interface I/O Interface
5 x Internal RS-232
8 x Internal USB 2.0
KB/MS
1 x LPT
1 x RS-232

Ordering Information

IMBA-Q454-R10 ATX Motherboards supports 45nm Core 2 Duo/ Quad with a1333/1066/800MHz FSB,Intel Q45 & ICH10DO platform,Dual Intel GbE,six SATA II with RAID,six COM ports,USB and Audio,RoHS
