KINO-CV-D25501/N26001

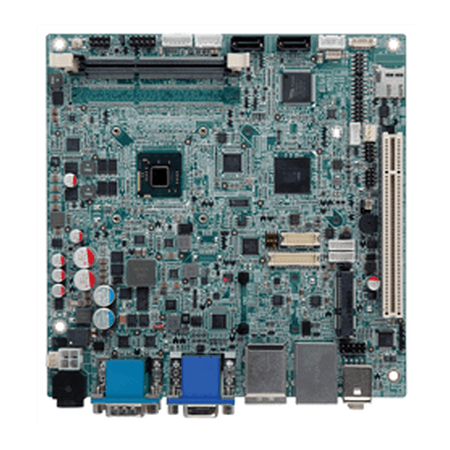

Mini-ITX SBC with Intel® D2550/N2600 processor

End of Life

End of Life Notice

* Effective Date: 2018/09/28

» Mini-ITX form factor with Intel® D2550/N2600 dual-core processor supports DDR3/DDR3L (1.35V) memory
» Wide range 9V ~ 28V DC input
» Flexible VGA, dual LVDS and HDMI™ with dual-display support
» Complete I/O: six USB 2.0, two USB 3.0, two SATA 3Gb/s, six COM, audio and mSATA SSD capable
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

CPU Cooler
CPU Cooler Heatsink
Display
Display Dual display supported
1 x VGA
1 x Single-channel 18-bit
(N2600)/24-bit LVDS2 (D2550)
1 x 24-bit dual-channel LVDS
1 x HDMI™
Environment
Humidity 5% ~ 95%, noncondensing
Operating Temperature -20°C ~ 60°C with free air, -20°C ~ 70°C
with force air for D2550 processor
-20°C ~ 70°C with free air, -20°C ~ 75°C
with force air for N2600 processor
Expansion Slots
Expansion Slots 1 x PCIe Mini Card Slot
1 x PCI
I/O Interface
Audio Realtek ALC662 HD Audio codec
Digital I/O 8-bit digital I/O
Ethernet Dual LAN: Realtek RTL8111E PCIe GbE
controller with ASF 2.0 support
I/O Interface 5 x RS-232
1 x RS-422/485
6 x USB 2.0
2 x USB 3.0
1 x TPM connector (2x10 pin)
1 x KB/MS by 6-pin header
I/O Interface
I/O Interface 6 x USB 2.0
5 x RS-232
1 x RS-422/485
2 x USB 3.0
Power
Power consumption 12V@2.8A (1.86GHz Intel® D2550 CPU
with DDR3 1333MHz 4GB DIMM)
12V@2.4A (1.6GHz Intel® N2600 CPU
with 1333MHz 2GB DDR3 DIMM)
System
Chipset NM10
CPU Intel® Atom™ Processor D2550
1.86GHz
Intel® Atom™ Processor N2600 1.6GHz
CPU Socket On Board
Memory Max. 1 x 204-pin, Max.4GB, 1066 MHz DDR3/
DDR3L (1.35V) SO-DIMM (D2550)
1 x 204-pin, Max.2GB, 800 MHz DDR3/
DDR3L (1.35V) SO-DIMM (N2600)
Storage 2 x SATA 3Gb/s or
1 x SATA 3Gb/s +
1 x mSATA
1 x microSD slot (bootable)Realtek ALC662 HD Audio codec
Watchdog Timer
Watchdog Timer Software programmable and supports 1~255 sec. system reset

Ordering Information

KINO-CV-D25501-R10 Mini ITX SBC with Intel Atom D2550 1.86 G Hz,DDR3,VGA/HDMI™/Dual LVDS,Dual GbE,USB3.0,USB 3.0,9~28v,SATA 3Gb/s,Audio,RoHS
KINO-CV-N26001-R10 Mini ITX SBC with Intel Atom N2600 1.6 G Hz,DDR3,VGA/HDMI™/Dual LVDS,Dual GbE,USB3.0,USB 3.0,9~28v,SATA 3Gb/s,Audio,RoHS
KINO-CV-N28001-R10 Mini ITX SBC with Intel Atom N2800 1.86 G Hz,DDR3,VGA/HDMI™/Dual LVDS,Dual GbE,USB3.0,USB 3.0,9~28v,SATA 3Gb/s,Audio,RoHS

Package Contents

Package Content
  • 1 x KINO-CV-D25501/N26001 single board computer

  • 1 x I/O shielding

  • 1 x Dual-port USB cable

  • 1 x Mini jumper pack

  • 2 x SATA with 5V output cable Kit

  • 1 x QIG


Download Specs.
