AC-KIT2-888S

Realtek ALC888S 7.1 Channel HD Audio peripheral board,half size, RoHS

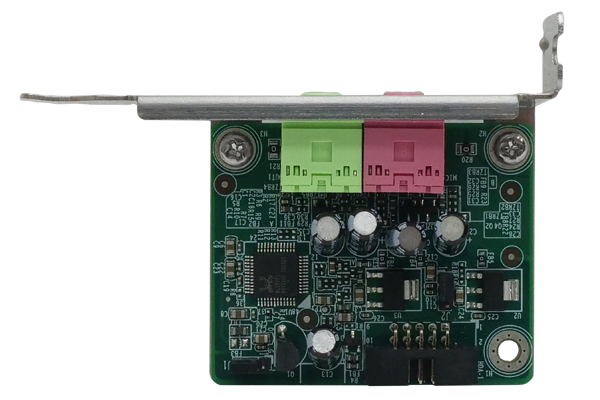

AC-KIT2-888S-R10 Front
AC-KIT2-888S-R10 Side
  • AC-KIT2-888S-R10 Front
  • AC-KIT2-888S-R10 Side
» Realtek ALC888S HD Audio codec IC supported
» Two audio jacks for mic in and line out
» Driver supports Windows® 2000/2003/XP/Vista/7/10 (32/64 bits) and Linux (Ubuntu or Debian)

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 50mm x 40mm
I/O Interface
Audio HD Audio : two audio jacks for mic in and line out
Environment
Operating Temperature 0°C – 60°C
Storage Temperature -30 – 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

AC-KIT2-888S-R10 Realtek ALC888S 7.1 Channel HD Audio peripheral board,small size,RoHS

Package Contents

Package Content
  • 1 x AC-KIT2-888S audio peripheral board

  • 1 x Audio cable

  • 1 x QIG

  • 1 x IO Shielding
