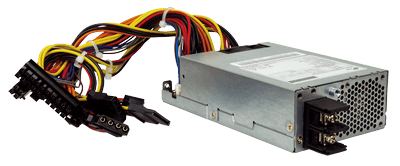

ACE-A4520D

250W 24V DC input 1U ATX Power Supply

250W 24V DC input 1U ATX Power Supply

Hardware Spec.

General
Dimensions 150 x 81.5 x 40.5
Efficiency 80%
MTBF 100000
Operating temperature 0°C ~ 50°C
Storage temperature -20°C ~ 80°C
Watt 250W
Input
Voltage 18 ~ 36 VDC input
Input Current 18 A (RMS) @ -24 VDC
Output
Voltage +3.3V/10A,+5V/14A,+12V1/18A,-12V/0.3A,+5Vsb/2.5A
Over Voltage Protection + 3.3 Vdc:3.7V~4.5V
+5Vdc:5.7V~6.5V
+12Vdc:13.3V~15.5V
Short Circuit Protection +3.3V, +5V, +12V shutdown and latch off

Ordering Information

ACE-A4520D-R11 1U flex ATX 250W Power Supply;24VDC;CCL;RoHS
