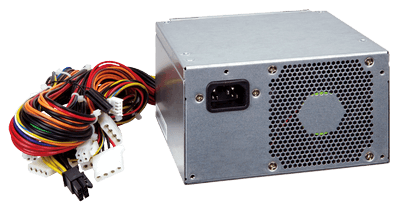

ACE-A160B

600 W PS/2 ATX Power Supply with ErP

600 W PS/2 ATX Power Supply with ErP

Hardware Spec.

Input
Voltage 90~264 VAC Full Range
Frequency 47 Hz ~ 63 Hz
Input Current 8A (RMS)@115VAC, 4A (RMS)@230VAC
Inrush Current 40A max. for 115VAC, 80A max. for 230VAC
Output
Voltage +3.3V/25A,+5V/25A,+12V1/16A,+12V2/16A,+12V3/16A,+12V4/16A,-12V/0.5A,+5Vsb/4A,-5V/0.5A
Over Voltage Protection +3.3V: 3.9V-4.5V
+5V: 5.7V-6.5V
+12V1 ~ +12V4: 13.3V-16.7V
Short Circuit Protection +3.3V, +5V, +12V1, +12V2, +12V3, +12V4, 24V or -12V shutdown and latch off
General
Watt 600
Efficiency 82%
MTBF 100000
Operating temperature 0°C ~ 50°C
Storage temperature -20°C ~ 80°C
Dimensions 140 x 150 x 86
Output Connector 1 x 20+4-pin ATX,
2 x 4-pin 12V CPU,
9 x HDD/CDROM,
1 x Graphics card power,
2 x FDD,2 x SATA

Ordering Information

ACE-A160B-R11 600W PS/2 ATX Power Supply with ERP;RoHS
