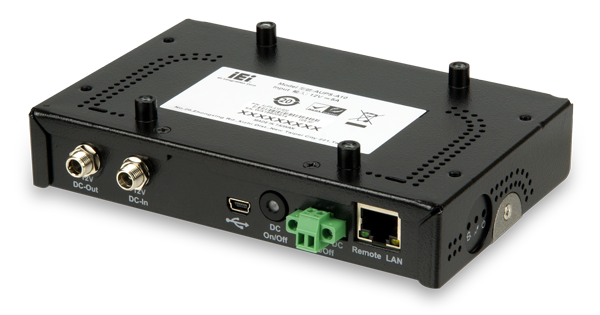

Output 60W UPS

End of Life

End of Life Notice

* Effective Date: 2021/12/16

• 60W (5A @ 12V) output
• 28Wh or 56Wh, for more than 140 minutes operation time (depending on panel PC power requirements)
• Rugged metal enclosure for standard VESA 75/100 mounting
• Web-based, remote network management, no software installation required
• Local PC-based monitoring software for input detection and battery status monitoring
• Auto shut down when battery low
• Remote DC output on/off switch for external switch installation
• Provides stable power to the PC during line sags and spikes and absorbs power surges and transients, protecting expensive equipment

Hardware Spec.

Capability (Watt)
Capability (Watt) 7.26V 5200 mAH / 37.7W
Color Black
Dimensions 152mm x 96mm x 28mm
Operating temperature 0°C~40°C
Storage temperature -20°C~50°C
Watt 60W
Material SECC
Weight 244g
Voltage DC 12V
Input Current 1. Adapter is 12V-6A (Load is 60W)
2. Battery is 6V-12A (Load is 60W)
Voltage DC +12V +/-5%
Over Voltage Protection 1. Battery low is 10% of battery capacity
2. Shuntdown 5% of battery capacity (Default)
3. The end of battery discharge voltage is 6V

Ordering Information

AUPS-A10-R20 VESA 75, DC 12V input 60W UPS module with 7.26V;5200mAH, 2S2P Li-Ion battery,R20

Package Contents

Package Content
  • 1 x DC power cable, 150mm, DC plug / 5.5 x 2.1 to DC plug / 5.0 x 2.5 without lock

  • 1 x USB cable, 200mm, USB type A male to mini USB

  • 1 x Remote switch cable, 1200mm

  • 1 x Screw kit
