gKINO-DMF

Mini-ITX SBC supports AMD Merlin Falcon SoC Proccessor

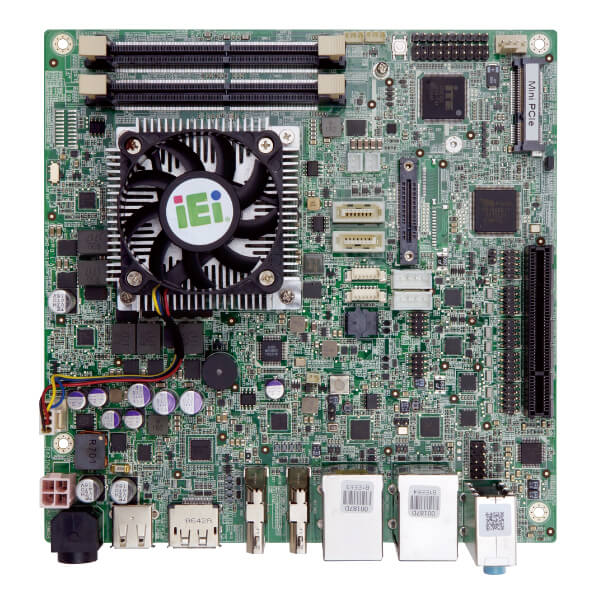

gKINO-DMF mini-itx Industrial Motherboard
gKINO-DMF-Mini-ITX-SBC
gKINO-DMF-Mini-ITX-SBC
  • gKINO-DMF mini-itx Industrial Motherboard
  • gKINO-DMF-Mini-ITX-SBC
  • gKINO-DMF-Mini-ITX-SBC
» Mini ITX form factor with AMD Merlin Falcon processor with DDR4 memory
» Triple display via, HDMI 1.4, DP++
» M.2 B key support
» Full-size PCIe mini slot

Hardware Spec.

System
CPU FP4 BGA supports AMD Merlin Falcon SoC
RX-421BD on-board SoC (2.1GHz, quad-core, 2MB cache, TDP=35W)
RX-216GD on-board SoC (1.6GHz, quad-core, 1MB cache, TDP=15W)
Memory Two 260-pin 2400MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs
Memory Max. 64GB
Physical Characteristics
Dimensions (LxWxH) (mm) 170 X 170
Net Weight 700g
Storage
Storage 1 x SD/MicroSD card
I/O Interface
Display Output 2 x HDMI :1.4 (up to 4096x2160@24Hz)
1 x Display Port :DP++ (up to 3840x2160@60Hz)
Ethernet Description: Dual GbE RTL 8111GN
Audio 1 x Line in :on rear IO
1 x Line out :on rear IO
1 x Mic :on rear IO
1 x Front Audio :2x5 pin
I/O Interface 4 x Internal RS-232 :2 X 2x5 pin, p=2.0,
2 X Support Cctail,TTL(1 X 4 pin, p=2.54)
2 x Internal RS-232/422/485 :2x5 pin, P=2.0
1 x External USB 2.0
4 x External USB 3.2 Gen1x1
4 x Internal USB 2.0 :2x4 pin, P=2.0
1 x DIO 8-bit digital I/O (2x5 pin)
Expansion 1 x PCIe x8
1 x PCIe mini Card Slot
Other Features
TPM 2x10 pin
Power
Power Consumption 12V@5.54A (AMD RX-421BD 2.1GHz CPU with 2400 MHz 16GB DDR4 memory)
Power Supply 12V DC input
1 x Internal power connector (2x2 pin)
1 x External DC jack (4-pin DIN)
Support AT/ATX mode
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -10°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

gKINO-DMF-421-R10 Mini-ITX SBC supports AMD RX-421BD on board SoC(quad-core 2.1GHz, 35W), DDR4 ,triple independent displays,HDMI/DP, dual GbE, SATA 6Gb/s, USB3.0, PCIe mini, M.2,HD audio and RoHS
gKINO-DMF-216-R10 Mini-ITX SBC supports AMD RX-216GD on board SoC(dual-core 1.6GHz, 15W), DDR4 ,triple independent displays,HDMI/DP, dual GbE, SATA 6Gb/s, USB3.0, PCIe mini, M.2,HD audio and RoHS

Package Contents

Package Content
  • 1 x gKINO-DMF single board computer with CPU cooler

  • 1 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
