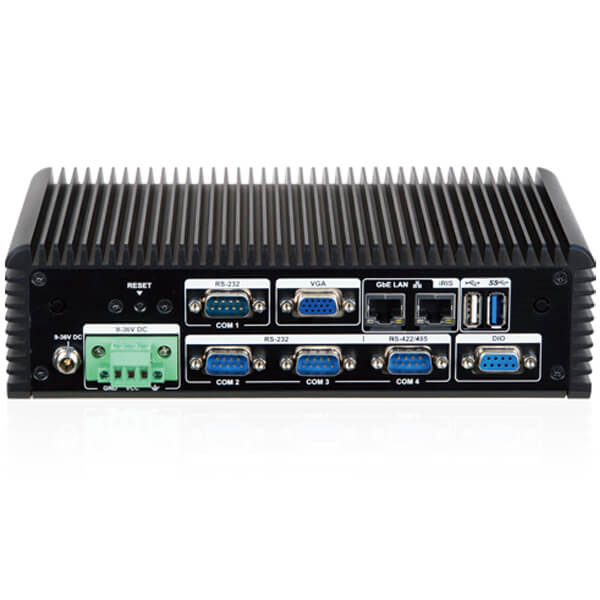

QTS-Gateway for Fanless Embedded System with Intel® Celeron® J1900 Processor

End of Life

End of Life Notice

* Effective Date: 2019/12/30

» Fanless system with Intel® Celeron® J1900 Processor
» Supports four COM ports (three RS-232, one RS-422/485)
» 9~36V DC input support
» Wide operating temperature: -20°C ~ 60°C with SSD
» Pre-install QTS-Gateway

IEI QTS Gateway Introduction Video

QTS Gateway can help customers easily migrate their current application to the cloud in just one step. It provides virtualization technology and Docker Container technology for any kinds of cloud application. QTS Gateway is capable to achieve the goals of Remote Control, Expected Maintenance and Asset Management in industrial IoT applications.

Hardware Spec.

Form factor
SBC Form Factor Intel® Celeron® J1900 processor
(2 GHz, quad-core, 2 MB cache, TDP=10W)
Cooling method / System Fan Fanless
Chipset SoC
Memory Max. 1 x 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM (system max. 8 GB)
Drive Bays 1 x 2.5' SATA 3Gb/s HDD Bay
Storage 1 x 2.5' SATA 3Gb/s HDD Bay
I/O Interface
Display 1 x VGA
Audio 1 x Line out
I/O Interface 1 x VGA
3 x USB 2.0
1 x USB 3.0
3 x RS-232
1 x RS-422/485
1 x PCIe GbE by Intel I210
1 x PCIe GbE by Intel I211
1 x Line out
Digital I/O 8-bit digital I/O
Input 3-pin terminal: 9 V~36 V DC
Power consumption 12V@1.45A (with Intel® Celeron® J1900 CPU and one 8 GB 1333 MHz DDR3 memory)
Operating Temperature -20°C ~ 60°C with air flow (SSD)
Dimensions 229 x 64 x 132
Weight 2.1 kg / 3.9 kg
Expansion Slots
Expansion Slots 1 x Half-size PCIe Mini card (only for iRIS)
iRIS 1 x iRIS-1010-R10 (optional purchase)

Ordering Information

ECW-281BWD-BTi-QGW-R10 Fanless embedded system with WAFER-BTi-R10,with Intel® Celeron J1900 2GHz, 4 serial ports,with 4GB DDR3L pre-installed SO-DIMM memory, with QTS-Gateway, 9~36VDC in, w/o adapter, black, RoHS

Package Contents

Package Content
  • 1 x Wall mount bracket

  • 1 x Screw set
