uIBX-230-BT

Ultra Compact Size,Intel® Celeron® Processor N2930 1.83 GHz

End of Life

IEI-uibx-230-mini-box-pc

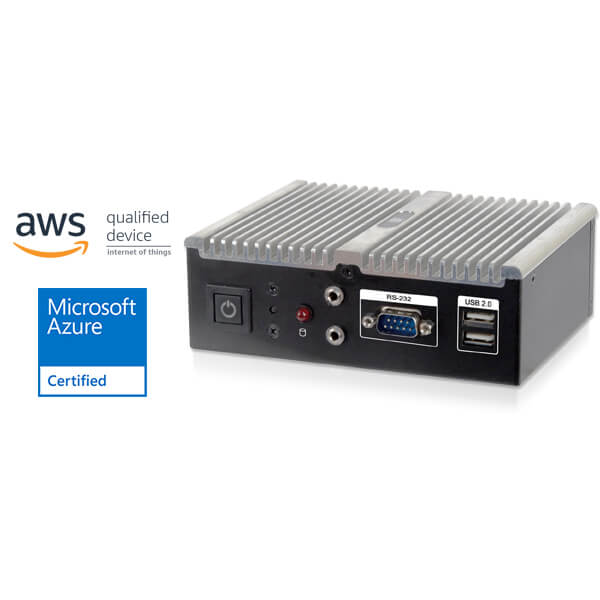

IEI-uibx-230-mini-box-pc-AWS-IoT-certified
IEI-uibx-230-mini-box-pc
  • IEI-uibx-230-mini-box-pc
  • IEI-uibx-230-mini-box-pc-AWS-IoT-certified
  • IEI-uibx-230-mini-box-pc

End of Life Notice

Effective Date: 2019/12/20

» Ultra compact size embedded system
» Intel® Celeron® processor N2930 1.83 GHz 7.5W on-board
» 1 x 2.5'' SATA 6Gb/s HDD/SSD drive bay
» DDR3L SO-DIMM for low power consumption

Hardware Spec.

Form factor
SBC Form Factor CPU:Intel® Celeron® N2930 1.83 GHz
Chipset:SoC
System Memory:1 x 204-pin DDR3L 1.35 V SO-DIMM (system max: 8 GB) Pre-installed 2 GB
I/O Interface
I/O Ports 1 x USB 3.0
3 x USB 2.0
Ethernet:
1 x RJ-45
1 x PCIe GbE by Intel® I210
RS-232:1 x DB-9
Display:1 x VGA
Resolutio: 2560 x 1600
Audio:1 x Line-out, 1 x Mic-in
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5' SATA 3Gb/s HDD/SSD bay
Color
Color Silver
Dimensions
Dimensions 135.6 x 102.8 x 47
Weight
Weight 470 g/1.4 kg
Environment
Operating Temperature -20°C ~60°C with air flow (SSD)
Humidity 5% ~ 95%, non-condensing

Ordering Information

uIBX-230-BT-N2/2G-R11 Fanless embedded system , Intel Bay-Trail N2930 1.83GHz, TDP 7.5W, 2GB DDR3L pre-installed memory , 1 x VGA, 1 x RS-232, 12V DC, R11;RoHs

Package Contents

Package Content
  • 1 x Power Adapter (PSE & ErP certified)

  • 1 x Chassis Screw

  • 1 x Power Cord

  • 1 x Mounting Bracket
