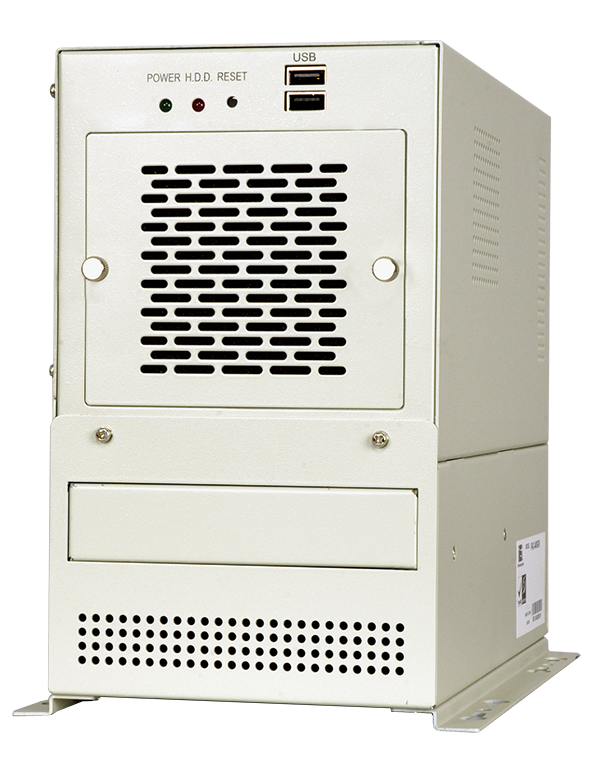

5-slot Half-size Compact Chassis

End of Life

End of Life Notice

* Effective Date: 2021/09/10

» RoHS compliant design
» Two USB ports on the front panel
» One 8 cm hot swappable fan
» One 3.5” internal HDD bay
» One 3.5” drive bay, for optional removable drive
» Supports Pentium® 4 half-size CPU card

Hardware Spec.

Form factor
SBC Form Factor Half-size, slot SBC
I/O Interface
I/O Openings 1 x LPT, 1 x COM
I/O Ports 2 x USB
Expansion Slots
Expansion Slots 5 slots
Cooling method / System Fan 1 x 8 cm
Drive Bays 1 x 3.5" HDD
Buttons Power switch, reset
Indicators Power, HDD
Physical Characteristics
Construction Heavy duty metal
Color W: White
Dimensions 269 mm x 140 mm x 230.5mm(DxWxH)
Weight 3.8 kg/5.6 kg(Net/Gross)
Operating Temperature 0°C ~ 50°C
Humidity 10% ~ 90%

Ordering Information

PAC-400GW-R11/A618C 5-Slot Half size Industrial Chassis,WHite,1x 8cm fan,witH ACE-A618C-RS-R10(180W),RoHS
