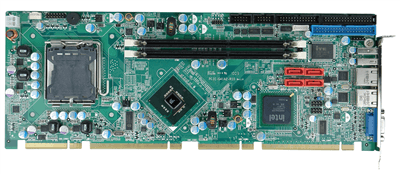

Full-size PICMG 1.3 CPU Card supports LGA 775 Intel® Core™2 Quad Processor

End of Life

End of Life Notice

* Effective Date: 2017/09/04

» PICMG 1.3 form factor
» Supports LGA 775 Intel® Core™2 Extreme/Quad/Duo and Celeron® processors, up to 1333 MHz FSB
» Dual-channel DDR3 800/1066 MHz memory supports up to 8 GB
» High performance PCI Express Gigabit Ethernet controller
» Four SATA 3Gb/s with Intel® Matrix Storage Manager support Raid 0, 1, 5 and 10
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System CPU
Chipset Intel® G41+ ICH7R
Memory Max. Two 240-pin 4GB (max.) 800/1066MHz dual-channel
DDR3 SDRAM DIMMs supported (System max. 8GB)
CPU Socket LGA775
I/O Interface Ethernet
Digital I/O 8-bit Digital I/O (4-bit input/4-bit output)
Audio 5.1 channel audio kit with Realtek ALC655
AC’97 codec
7.1 channel HD audio kit with Realtek
ALC888 codec supports dual audio streams
Power Power consumption
Environment Operating Temperature
Humidity 5% ~ 95%, non-condensing
Option iRIS
Storage Storage
Expansion Slots Expansion Slots
Watchdog Timer Watchdog Timer
CPU Cooler CPU Cooler
I/O Interface I/O Interface
1 x VGA
2 x USB 2.0
6 x Internal USB 2.0
2 x Internal RS-232

Ordering Information

PCIE-G41A2-R10 Full-size PICMG 1.3 CPU Card Supports LGA775 Intel Core 2 Quad Processor with DDR3,VGA,Dual PCIe GbE,SATAII,COM and USB 2.0,RoHS
