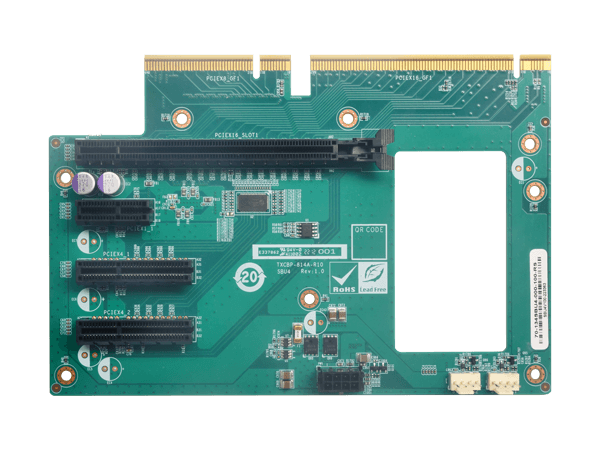

» 4-slot backplane for TANK-XM81 series expansion chassis
» One PCIe Gen 4 x16 & one PCIe Gen 3 x1 & two PCIe Gen 3 x4 slot
» Two system fan connectors
» Compatible chassis: TXC-XM81-4S-R10
» Support an additional power supply board
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | TANK-XM81 series customization |
| System | |
| Cooling method / System Fan | 2 x 4-pin (1x4) |
| Physical Characteristics | |
| Mounting |
TXC-XM81-4S TXC-XM81-G1 |
| Dimensions (LxWxH) (mm) | 175.8 x 119 |
| I/O Interface | |
| Expansion | 1 x PCIe x16 : Gen 4 |
| 2 x PCIe x4 : Gen 3 | |
| 1 x PCIe x1 : Gen 3 | |
| Power | |
| Power Supply | 1 x 8-pin (2x4) |
Ordering Information
| TXCBP-XM81-4A-R10 | Tank 81 Series Expansion Peripheral Card, backplane module, 4 Slot, 1xPCIe*16&2xPCIe*4&1xPCIe*1 w/ power connector |
|---|
