End of Life Notice
* Effective Date: 2021/09/10

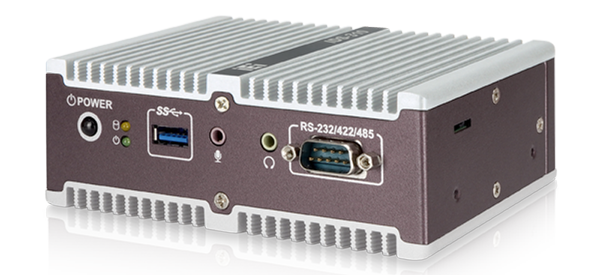

» Intel® Celeron® J3455 1.5GHz (up to 2.3GHz, quad-core, TDP 10W)
» Two GbE LAN ports
» Triple USB 3.2 Gen1
» M.2 A-key slot for expansion
» Pre-installed a Mustang-MPCIE-MX2 that has two Intel Myriad X VPUs for AI deep learning workload consolidation
Resources
Product News
eCatalog
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
●CPU: Intel® Celeron® J3455 1.5GHz (up to 2.3GHz, quad-core, TDP 10W) ●Chipset: SoC ●System Memory: 1 x 204-pin DDR3L SO-DIMM, 8 GB pre-installed ●Power: DC Jack: 12V DC Consumption: 12V @ 2.6A (Intel® Celeron® J3455 with 8GB memory) ●Reliability: Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis, IEC68-2-27 Operating Vibration: MIL-STD-810G 514.6C-1 (SATADOM) Safety/EMC: CE/FCC |
| I/O Interface | |
| I/O Ports |
●USB: 3 x USB 3.2 Gen1 ●Ethernet: 2 x RJ-45 PCIe GbE by RTL8111H controller ●COM Port: 1 x RS-232/422/485 with AFC (DB-9) ●Display: 3 x HDMI™ (up to 3840x2160@30Hz) ●Audio: 1 x Mic in, 1 x Line out ●TPM: 1 x TPM2.0 |
| Expansion Slots | |
| Expansion Slots |
●M.2: 1 x 2230 A key (PCIex1/USB 2.0) ●PCIe Mini: Pre-installed Mustang-MPCIE-MX2 |
| System | |
| Cooling method / System Fan | Fanless |
| Drive Bays |
SATADOM: Pre-installed 128GB Micro SD: 1 x Micro SD Slot |
| Indicator&Buttons | |
| Buttons |
1 x Power Button 1 x Reset Button 1 x AT/ATX Switch |
| Indicators |
HDD Power |
| Physical Characteristics | |
| Construction | Extruded aluminum alloy |
| Color | |
| Color | Brown & Silver |
| Dimensions | |
| Dimensions | 137 x 102.8 x 49.2 mm |
| Weight | |
| Weight | 910g/1.7kg |
| Environment | |
| Operating Temperature | -20°C ~ 45°C with air flow (SATADOM) |
| Humidity | 10% ~ 95%, non-condensing |
Ordering Information
| IDS-310AI-AL-J1/8GB-R10 | Fanless embedded system with Intel® Celeron® J3455 1.5GHz (up to 2.3GHz, quad dore, TDP 10W), pre-installed 8GB DDR3L memory, triple HDMI™ display, 12V DC, 128G SATADOM, Mustang-MPCIE-MX2 and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
