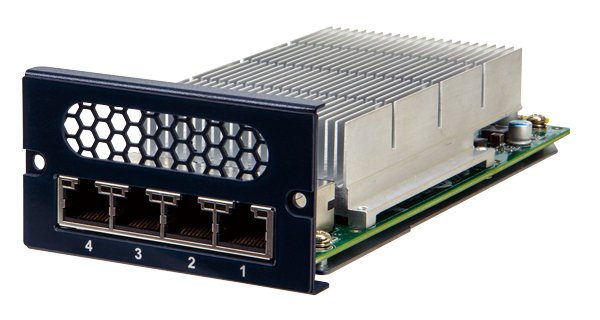

PulM-10G4T

Aquantia AQC107 based Network Interface Card with 4 x 10GBASE-T by 4 PCIe 3.0 x2 Interface

• 4 x Aquantia AQC107
• 4 ports 10G BASE-T connector
• 4 PCIe 2.0 x2
• RoHS compliant


Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 165.50 (L) x 77.8 (W) x 44.2 (H)
I/O Interface
Ethernet 4 x LAN (10GBASE-T (RJ-45))
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% RH, Non-condensing
Certifications
Safety & EMC RoHS
Card Slot Interface
PCIe 4 PCIe 3.0 x2
Card Features
Speed 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX
Controller Chip Aquantia AQC107

Ordering Information

PulM-10G4T-AQC107-R10 Aquantia AQC107 based Network Interface Card with 4x10GBASE-T by 4 PCIe 3.0 x 2 Interface.

Package Contents

Package Content
  • 1 x PulM-10G4T-AQC107 module

  • 1 x L-shaped T10 Plum Wrench

  • 1 x QIG
