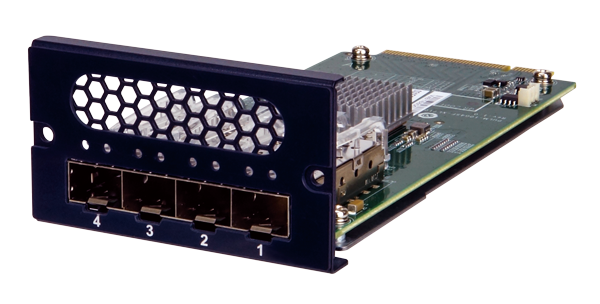

PulM-10G4SF-XL710
• 1 x Intel® Ethernet Controller XL710-BM1
• 4 ports 10 GbE SFP+ connector
• PCIe 3.0 x8
• RoHS /CE/FCC compliant
Hardware Spec.
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 165.50 (L) x 77.8 (W) x 44.2 (H) |
| I/O Interface | |
|---|---|
| Ethernet | 4 x SFP+ |
| Environment | |
|---|---|
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 75°C (-4°F ~ 167°F) |
| Humidity | 5% ~ 90% RH, Non-condensing |
| Certifications | |
|---|---|
| Safety & EMC | RoHS/CE/FCC compliant |
| Card Slot Interface | |
|---|---|
| PCIe | PCIe 3.0 x8 |
| Card Features | |
|---|---|
| Speed | 1GbE/10GbE |
| Controller Chip | Intel® Ethernet Controller XL710-BM1 |
