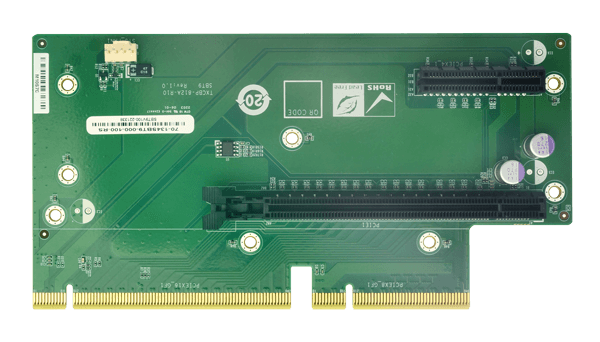

» 2-slot backplane for TANK-XM81 series expansion chassis
» One PCIe x16 & one PCIe x4 slot
» One system fan connector
» Compatible chassis: TXC-XM81-3S-R10

Hardware Spec.

Form Factor
Form Factor TANK-XM81 series customization
System
Cooling method / System Fan 1 x 4-pin (1x4)
Physical Characteristics
Mounting TXC-XM81-3S
Dimensions (LxWxH) (mm) 175.8 x 92
I/O Interface
Expansion 1 x PCIe x16
1 x PCIe x4

Ordering Information

TXCBP-XM81-2A-R10 Tank 81 Series Expansion Peripheral Card, backplane module, 2 Slot, 1xPCIe*16&1xPCIe*4
