Rich I/O Mini-ITX with Zhaoxin 16nm KX-6000 Series Processor

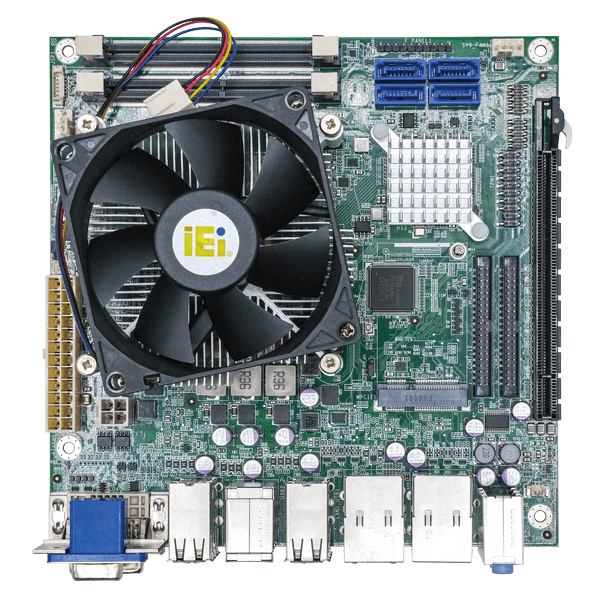

KINO-KX Mini-ITX SBC supports Zhaoxin 16nm processor
KINO-KX Mini-ITX SBC supports Zhaoxin 16nm processor
KINO-KX Mini-ITX SBC supports Zhaoxin 16nm processor
  • KINO-KX Mini-ITX SBC supports Zhaoxin 16nm processor
  • KINO-KX Mini-ITX SBC supports Zhaoxin 16nm processor
  • KINO-KX Mini-ITX SBC supports Zhaoxin 16nm processor
•  Mini-ITX SBC supports Zhaoxin 16nm KX-U6580/KX-U6780A(70W) on-board processor supports dual-channel DDR4 SO-DIMMs
•  Dual independent display(VGA & DVI-I) support
•  Up to 10 x RS-232 and 10 x USB 2.0 support
•  4 x USB 3.2 Gen1 x 1 (5Gb/s), SATA 6Gb/s, Full-size PCIe Mini Card slot and PCIe x16 expansion slot
•  ATX power input

KINO-KX Rich I/O Mini-ITX Industrial Motherboard Introduction

Zhaoxin 16nm KX-6000 Series On-Board CPU

Zhaoxin, a China-based semiconductor company launched their new 16nm processor KX-6000 series. The SoC features eight cores running at 3 GHz and increases performance over its predecessor by at least 50%. KX-6000 Series will focus on 8 different applications including finance, railway, energy, network security, MES, education, military and telecom operations.

Rich I/O with Flexible Design

KINO-KX include 14 x USB, 10 x RS-232, PCIe x 16 expansion slot and dual independent display (VGA & DVI-I) support. This isdesign for rugged solution and easy expansion capabilities for industrial applications.

Powerful Security Function
- IEI TPM Expansion -

Hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.

Application Field

Hardware Spec.

Form Factor
Form Factor Mini-ITX
CPU Zhaoxin Kaixian KX-6000 series 8-core processor
Zhaoxin KX-U6580 on-board SoC (8-Core, 8MB Cache, 2.5GHz, 70W)
Zhaoxin KX-U6780A on-board SoC (8-Core, 8MB Cache, 2.7GHz, 70W)
Chipset Zhaoxin ZX-200
Memory 2 x 260-pin 2666MHz Dual-channel DDR4 SO-DIMM (system max. 64GB)
Memory Max. Up to 64GB
Cooling method / System Fan 1 x CPU smart fan connector (1x4 pin)
1 x System smart fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 170 mm x 170 mm
Net Weight GW:900g / NW:400g
Storage 4 x SATA
I/O Interface
Display Output 1 x DVI-I(up to 1920x1080@60Hz)
1 x VGA(up to 1920x1080@60Hz)
Ethernet 2 x LAN: Detail -
LAN1: Realtek RTL8111H PCIe GbE controller
LAN2: Realtek RTL8111H PCIe GbE controller
Audio HD Audio: Realtek ALC888S
1 x Line in
1 x Line out
1 x Mic
I/O Interface 10 x External USB 2.0
4 x External USB 3.2 Gen1x1
10 x Internal RS-232: 2 x RS-232 (2x5 pin, P=2.0), 8 x RS-232 (2x20 pin, P=2.0)
1 x PS/2: 1 x KB/MS(External)
Expansion 1 x PCIe mini Card Slot: Full-size PCIe Mini card slot
1 x PCIe x16(with PCIe x8 Gen 3.0 signal)
Other Features
TPM 1 x TPM 2.0 connector (2x10 pin)
Power Consumption 12V @ 3.38A, 3.3V @ 0.62A, 5V @ 9.81A, 5VSB @ 0.03A
(Zhaoxin KX-U6580 2.5 GHz CPU with 8 GB 2400 MHz DDR4 memory)
Power Supply ATX power supply
ErP/EuP Compliant
Operating Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 60°C
Humidity 20% ~ 95%, non-condensing
Safety & EMC CE/FCC compliant

Ordering Information

KINO-KX-U6580-R10 Mini-ITX SBC supports Zhaoxin 16nm KX-U6580 (70W) on-board processor with PCIe Mini, VGA, DVI, Dual GbE LAN, USB 3.2 Gen1, SATA 6Gb/s, COM, Audio and RoHS

Package Contents

Package Content
  • 1 x KINO-KX single board computer with CPU Cooler

  • 1 x I/O Shielding

  • 1 x SATA cable

  • 1 x QIG
