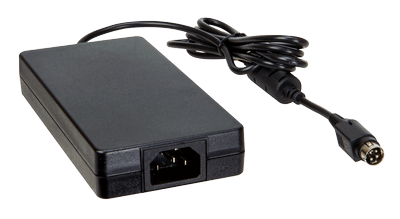

FSP096-AHAN3

96 W AC/DC Adapter

96 W AC/DC Adapter

Hardware Spec.

Environment
Operating Temperature 0°C ~ 40°C
Storage Temperature -20°C ~ 80°C
Input
Voltage 90-264 VAC
Frequency 47-63 Hz
Input Current 8A
Inrush Current 8A
Output
Voltage 12V
General
Watt 96W
Efficiency 88.3%
Dimensions 75.6 x 151.3 x 25.4 (mm)

Ordering Information

63040-010096-231-RS Adapter Power;FSP;FSP096-AHAN3;9NA0961449;Active PFC;Vin:90~264VAC;96W;75.6*151.3*25.4mm;Plug=7.5mm;Cable=1500mm;Erp(NO LOAD 0.21W),NXP TEA2016AAT;Vout:12VDC;Φ2.5/Φ5.5/lock;CCL;RoHS
63040-010096-050-RS Adapter Power;FSP;FSP096-AHAN3;9NA0961453;Active PFC;Vin:90~264VAC;96W;151.3*75.6*25.4;Plug=9.5mm;Cable=1500mm;Vout:12VDC;Φ2.5/Φ5.5;CCL;RoHS
63040-010096-040-RS Adapter Power;FSP;FSP096-AHAN3;9NA0961452;Active PFC;Vin:90~264VAC;96W;151.3*75.6*25.4;Plug=6.5mm;Cable=1500mm;Vout:12VDC;Din 4Pin/lock;CCL;RoHS
