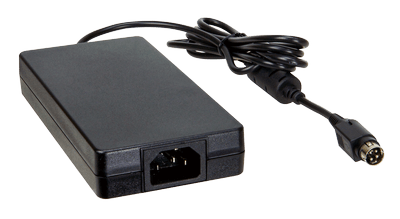

FSP120-AHAN3

120 W AC/DC Adapter

120 W AC/DC Adapter

Hardware Spec.

Environment
Operating Temperature 0°C ~ 40°C
Storage Temperature -20°C ~ 80°C
Input
Voltage 90-264 VAC
Frequency 47-63 Hz
Input Current 2A
Inrush Current 10A
Output
Voltage 12V
General
Watt 120W
Efficiency 87%
Dimensions 75.6 x 151.3 x 25.4 (mm)

Ordering Information

63040-010120-300-RS Adapter Power;FSP;FSP120-AHAN3;9NA1206708;Active PFC;Vin:90~264VAC;120W;Dim:75.6*151.3*25.4mm;Plug=6.5mm;Cable=1500mm;Erp(NO LOAD 0.15W);Vout:12VDC;Din 4Pin/lock;CCL;RoHS
